Eaton 7503W Three Way Decorator Switch
Eaton 7503W Three Way Decorator Switch
Regular price
$3.99
Regular price
$4.99
Sale price
$3.99
Unit price
/
per

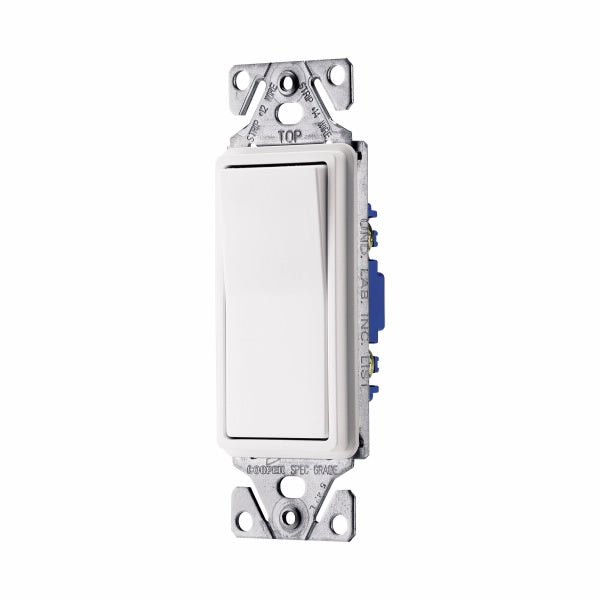

Three Way Decorator Switch
Eaton standard grade decorator switch, #14-12 AWG, 15A, Flush, 120/277V, Back/push, Decorator, Maintained, White, Motor Control, Fan, LED, Incand, ELV,MLV,CFL, Florscnt, Halogen, Three-way, Thermoplastic
- Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide superior integrity
- Backwire clamps on the side terminals provide for easy installation of #12 and #14 AWG wire
- Push-in terminals accept #14 AWG solid wire
- Stippled ground screw terminal standard
- 120/277V/AC rating ideal for fluorescent lighting fixtures and a broad variety of applications
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips, and Robertson-head tools for installation flexibility
- Lighted switches glow in “OFF” position

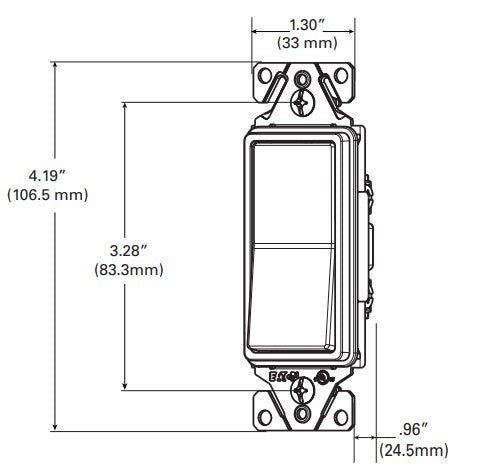

Length (in.) | 4.19" |
Width (in.) | 1.30" |
Depth (in.) | 0.96" |
Weight (lbs) Each | .0.14 lbs |
Spec Sheet
Spec Sheet
Info
Type | Decorator Switch |
Connector Type |
Screw
|
Switch Type |
Three-Way
|
Compliance |
RoHS Compliant
|
Certifications | cULus Listed |
Color | White |
Material | Polycarbonate |
Additional Info
Load Type | Motor Control, HAL, LED, CFL, MLV, ELV, INC, Fan, FLR |
Wiring Method | Back and push |
Mounting | Flush |
Wire Size | #14-10 AWG |
VolTAGE | 120V |
Amp. Rating | 15 A |
Use | Residential |
Actuator |
Decorator |
