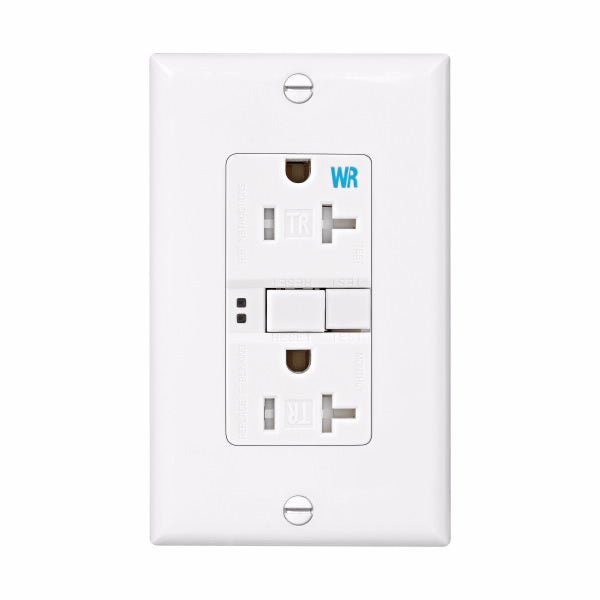

Eaton TWRSGF20W Tamper & Weather Resistant GCFI Self-Test Receptacle

Eaton TWRSGF20W Tamper & Weather Resistant GCFI Self-Test Receptacle

Regular price $34.99
Regular price $39.99 Sale price $34.99
Sale Sold out
Shipping calculated at checkout.
Count

Cooper Wiring TWRSGF20W 20 Amp GFCI Self-Test Duplex Receptacle

Eaton GFCI receptacle ,Weather resistant, Tamper resistant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V ,Back and side wire, White, Brass, Tamper and weather resistant,Polycarbonate,5-20R,Two-pole, three-wire, grounding

  • Matching thermoplastic wall plate included
  •  Provides compliance with 2017 NEC® Article 406.9 that states that all receptacles installed in wet and damp locations must be weather resistant
  • Manufactured with the highest grade materials; durable impact resistant thermoplastic face and back body is virtually unbreakable
  • TR” designation provides visual identification that device has tamper resistant shutters preventing insertion of foreign objects
  • “WR” indentifier quickly indicates during inspections that a weather resistant receptacle has been installed
  • Terminal screws are backed out and ready to wire
  • Extra-long and extra-wide mounting straps
  • Patented built-in wire stripper for #14 and #12 wire to speed installation
  • Side-wire terminals accept up to #10 solid or stranded wire
Length (in.) 4.28"
Width (in.) 1.68"
Depth (in.) 1.26"
Weight (lbs) Each 0.41 lbs

Spec Sheet

Spec Sheet

Installation Instructions

Info
Type GCFI Receptacle
Connector Type
Screw
Certifications cULus Listed UL Listed
Color White
Material Thermoplastic, PVC
Additional Info
Wiring Method Back and Side Wire
Mounting Flush
Wire Size #14-10 AWG
Number of Poles Two-pole, three-wire, grounding
Voltage 125V
Amp. Rating 20 A
Use Residential / Commercial
Torque Rating 16 lbf-inch

 Compliances
  • cULus Listed to UL498, file no. E15058
  • UL certified to CSA C22.2, no. 42
  • NOM/ANSI certified.
