Emergi-Lite

Emergilite 8NY-2/3R-LED-N NYC Approved Emergency Light Exit Sign Combo

Emergilite 8NY-2/3R-LED-N NYC Approved Emergency Light Exit Sign Combo

$199.99
$199.99
Sale Sold out
Shipping calculated at checkout.

Exit Sign, Single/Double Faced, Battery Backup, NYC Approved, White

The Emergi-Lite 8NY-2/3R-LED-N NYC Economizer combines an 8-inch red-letter exit sign with two or three LED emergency heads in one self-powered unit. It is designed for New York City public-assembly requirements and operates on 120/277V AC.

  • 20 gauge heavy duty steel case with white powder-coat finish
  • Stencil face has 8” high letters and universal knock out chevrons
  • Combination units can be wall and side mounted
  • LED Exit Legend illumination
  • Single or double face universal design
  • 120V/277V Operation standard
  • Universal 120/277 VAC transformer required
  • Nickel-Cadmium Battery
  • Suitable for Damp Location
  • Complies with NEC, Life Safety Code and OSHA
  • UL924 Listed
  • Unit has a three year full warranty
  • Nickel-Cadmium battery has a five year full, plus five year pro-rata warranty

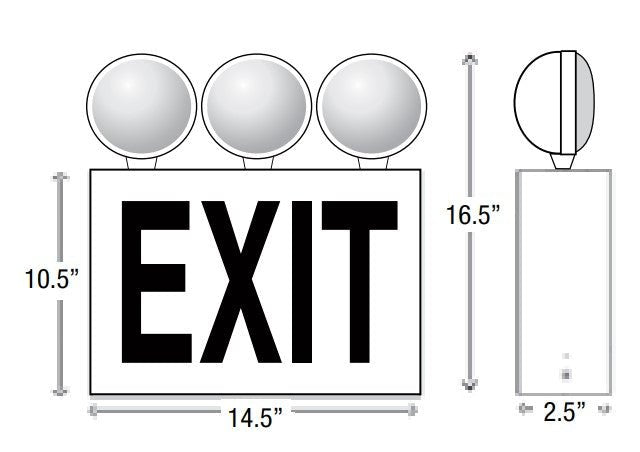

     Dimension
    Length (in.) 16.50"
    Width (in.) 14.50"
    Depth (in.) 2.25”
    Spec Sheet

    Spec Sheet

    Installation Instructions

    Info
    Type LED Exit Sign/Light Combo
    Watt 3W (1 each light)
    Lumen 300
    Mounting Ceiling, End, or Wall
    Compliances NEC, Life Safety Code, OSHA, NYC
    Warranty

    Unit has a three year full warranty

    Nickel-Cadmium battery has a five year full, plus five year pro-rata warranty
    Input
    		 120/277VAC, 60Hz 0.034A / 0.017A
    Color White/Red Stencil
