GE PLM2412C Load Center MLO 125A 24CKT N1 GRAY PON
GE PLM2412C Load Center MLO 125A 24CKT N1 GRAY PON
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

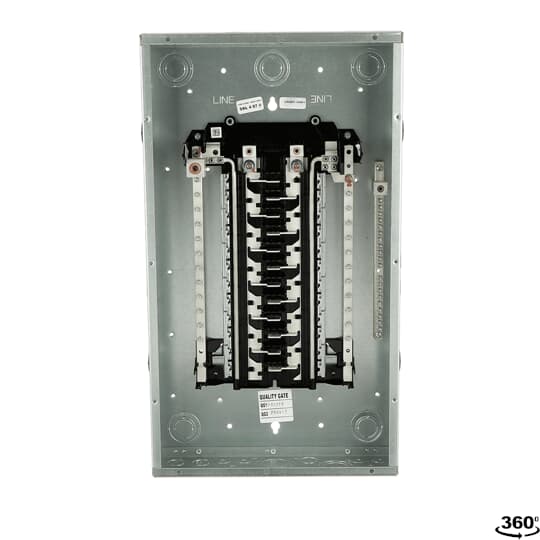

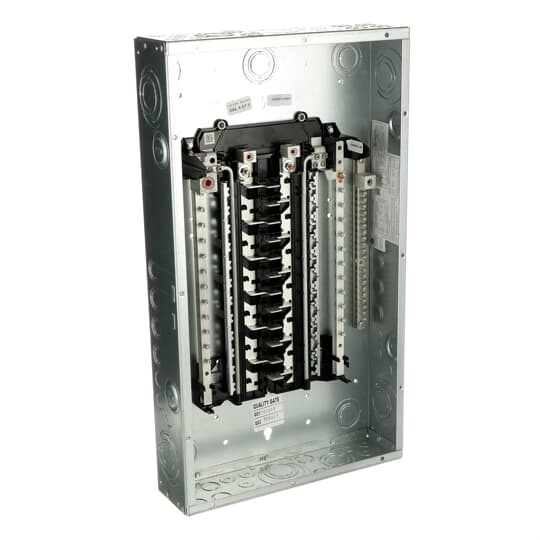

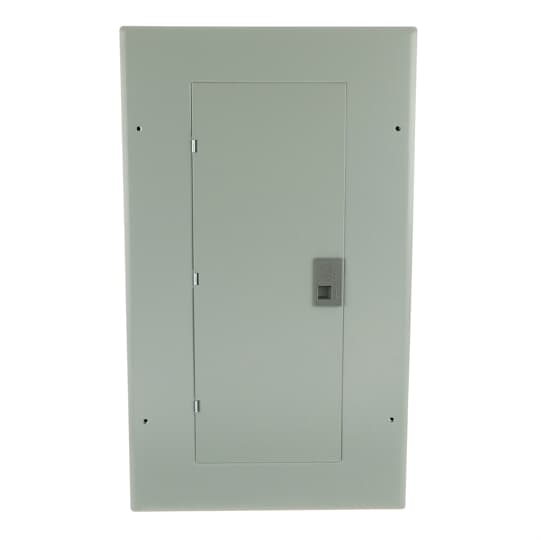

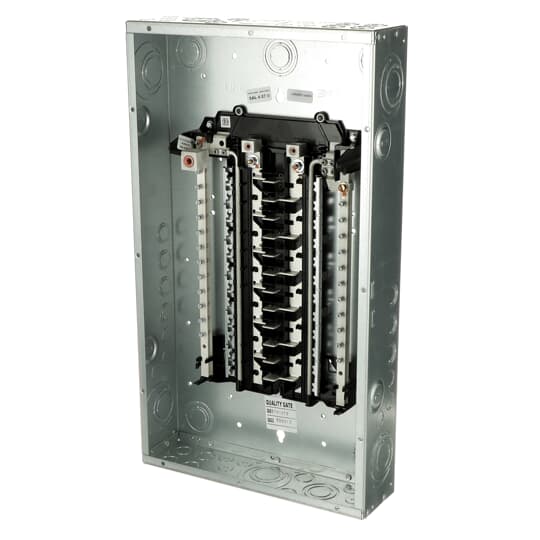

Load Center Main Lug Only 125A 24 Circuit NEMA1 Gray PON
PowerMark PRO convertible plug-on neutral load centers arrive as main lug but have the capability to have a main circuit breaker installed in the field. All ABB load centers are rated up to 60 degree/75 degree centigrade and suitable for use as service entrance equipment when installed in accordance with electrical code. The PLM2412C features space for 24 - 1" circuit breakers and 48 circuits, a 125-ampere bus rating, copper bus bars, and a gray combination/flush enclosure.
Spec Sheet
Spec Sheet
Line Drawing
Brochure
Info
| # Branch Circuit <250A | 24 |
| 1" Space | 24 |
| 1/2" Space | 0 |
| Amperage | 125A |
| Circuit Breaker Style | Plug on Neutral |
| Device type | Convertible |
| Door | Yes |
| Enclosure | Indoor |
| Enclosure Type | Indoor, Combination |
| Factory Installed Ground Kit | Yes |
| Feed | Either |
| Input/Output Voltage | 120/240V ac |
| Interrupting Capacity Rating | 22/22K |
| Load Center Type | Plug-On Neutral Load Centers |
| NEMA Rating | NEMA 1 |
| Number Of Circuits | 48 |
| Service & Voltage | 1 Phase, 3 Wire, 120/240V ac |
| Wires | 3 Wire |
| UL/CUL Listing | UL |
Dimensions
| Depth | 3.805" |
| Height | 19.00" |
| Weight | 19.2LB |
| Width | 14.11" |
