GM Lighting
GM Lighting Lamina 5W/10W 24VDC LED Configurable Laminated Sheet 27K-40K
GM Lighting Lamina 5W/10W 24VDC LED Configurable Laminated Sheet 27K-40K
Regular price
$99.90
Regular price
Sale price
$99.90
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

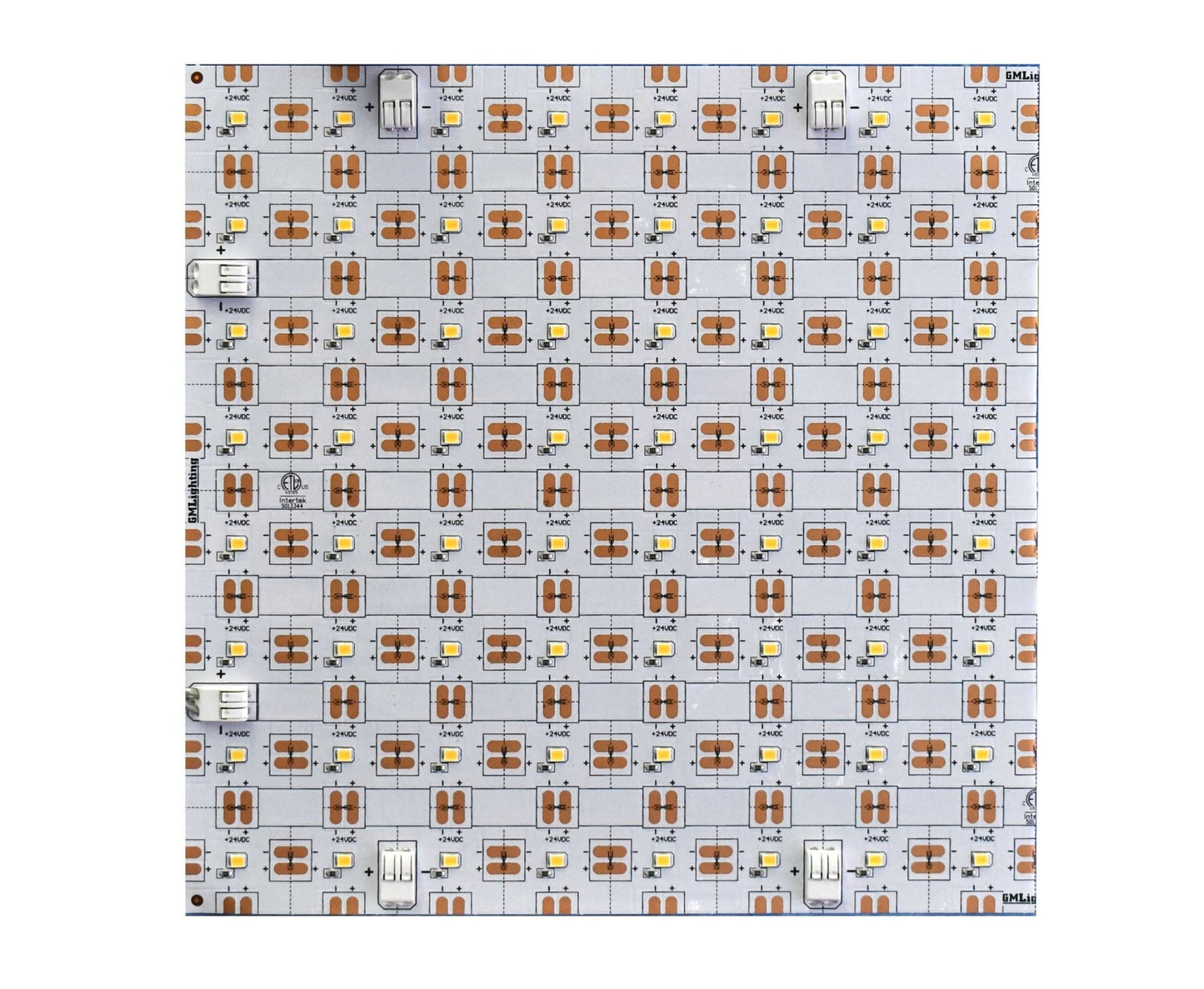

Lamina 24VDC Configurable Laminated Sheet
Lamina is a 24VDC flexible light sheet that can be cut in the field into geometric shapes, creating limitless illumination. Installation is easy and the operation is relatively cool. Lamina needs no heat sinks or dissipaters that may mar the clean, even presentation. Lamina is connectible via integral push-in connectors. Installation is as easy as using one of three options: peel and stick 3M tape, staples or screws. Conforms to curvilinear shapes like round columns. Includes 48” lead wires and one sheet-to-sheet connector.
- 24VDC
- 2700K, 3000K, 3500K, 4000K
- Standard output – 5W per sq. foot
- High output – 10W per sq. foot
-
Invisible Stand-Off support option allows even illumination
with translucent panels (easily raises diffusion translucent
panels 0.91” - 2.0” above Lamina. For hoizontal surface
use only). - Dimmable (Triac)
- 90+ CRI
- Damp location
- 128 LEDs per sq. foot (1 inch spacing)
- Connectible via integral push-in connectors
- Closet rated
- ETL
- 5 year warranty
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Catalog No. | Dimensions | Wattage | Lumens | Color Temp. |
|---|---|---|---|---|
| S12X12-SO-27 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 2700K |
| S12X12-SO-30 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 3000K |
| S12X12-SO-35 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 3500K |
| S12X12-SO-40 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 4000K |
| S12X12-HO-27 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 2700K |
| S12X12-HO-30 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 3000K |
| S12X12-HO-35 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 3500K |
| S12X12-HO-40 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 4000K |
Accessories
LUXcontrol CONTROLLERS
| MODEL | DESCRIPTION |
|---|---|
| SHWC | Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire |
| SHWD | LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage |
| SWD-60W-24VDC-DIM | SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC |
| SWD-100W-24VDC-DIM | SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC |
Accessories
