Cooper Lighting Solutions

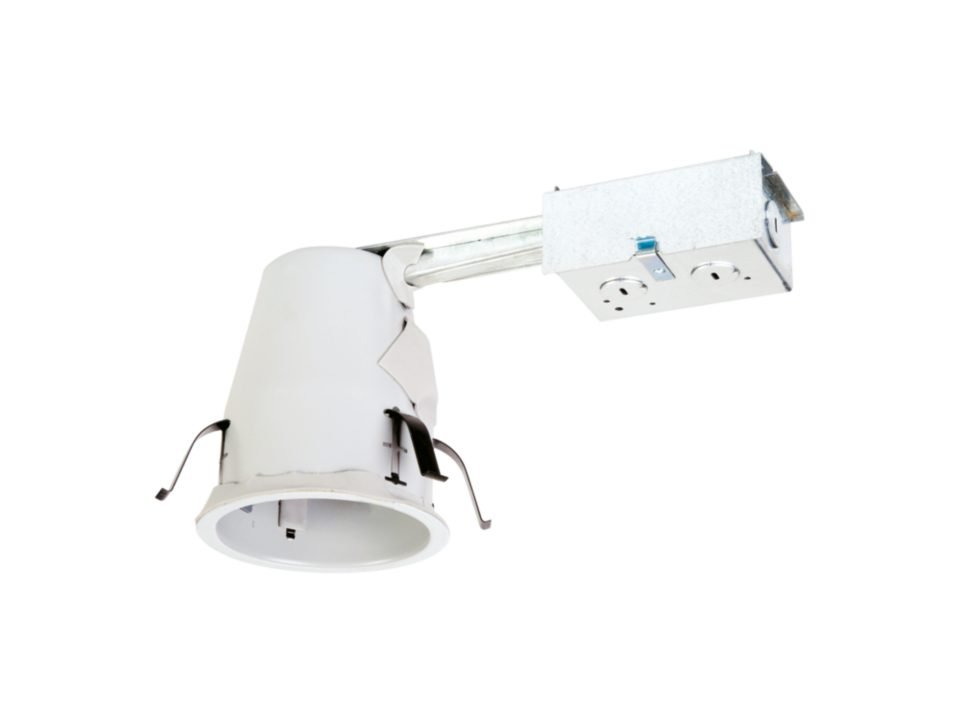

HALO E4RTATSB 4" NON-IC Air-Tight Remodel 120V w/ Socket Bracket

HALO E4RTATSB 4" NON-IC Air-Tight Remodel 120V w/ Socket Bracket

$12.69
$12.69
Sale Sold out
Shipping calculated at checkout.

4" NON-IC Air-Tite, Remodel, 120V w/ Socket Bracket

The E4RTATSB is a remodel Non-IC Air-TiteTM housing optimized and listed for EISA compliant tungsten-halogen lamps, CFL and LED lamps as well as incandescent. Housing features an adjustable socket bracket, and is suitable for residential or commercial applications. Installation in non-insulated ceilings with Air-Tite code compliant construction. If insulation is present it must be kept 3” from all sides of the housing. May be retrofit with compatible Halo LED lighting systems.

  • For use in insulated ceilings
  • Remodel housing design installs from below the finished ceiling
  • Exclusive remodel speed clamps securely lock from 3/8" to 2" ceilings
  • Air-Tite housing flange gasket
  • Air-Tite tested per ASTM E 283
  • Quick connect wiring tray with push-in sire nuts included
  • Hinged junction box with Slide-N-Side
  • Socket bracket adjusts lamp to various trim styles and designs
    Spec Sheets

    Spec Sheet

    Installation Instructions

    Info
    Housing Die-formed CRS. For installation from below the finished ceiling. Air-Tite gasket pre-installed on remodel flange
    Remodel Clips Four remodel clips secure housing and accommodates 1/2” and 5/8” ceiling materials
    Junction Box Seven conduit knockouts are uniform 1/2” size with true pry-out slots. Four pry-outs with integral strain relief simplify “NM” non-metallic sheathed cable installation. Three quick connect wire connectors included
    Socket Adjustable position porcelain socket with nickel plated brass screw shell provides flexibility in lamp positioning.
    Thermal Protector Self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation.
    Trims Halo Fit-All concept offers multiple trim options in a variety of design styles, and functional beam distributions to control beam angle and lumen delivery in accommodating various lamp types
    Additional Info
    Includes
    Quick Connect™ (3) Push wire nuts included, for speed & reliability. Clear caps for wire connection visibility
    Air-Tite™ code compliant  ASTM E283 compliant
    Compliance
     cULus Listed 1598 Luminaire
    cULus Damp Location Listed
    cULus Listed for Wet Location, covered ceiling, with select trims
    RoHS Compliant
    Air-Tite code compliant. Certified under ASTM E283; not exceeding 2.0 cfm (0.944 L/s) air leakage rate tested at a 1.57 psf (75 Pa) pressure differential

    View full details
