Cooper Lighting Solutions

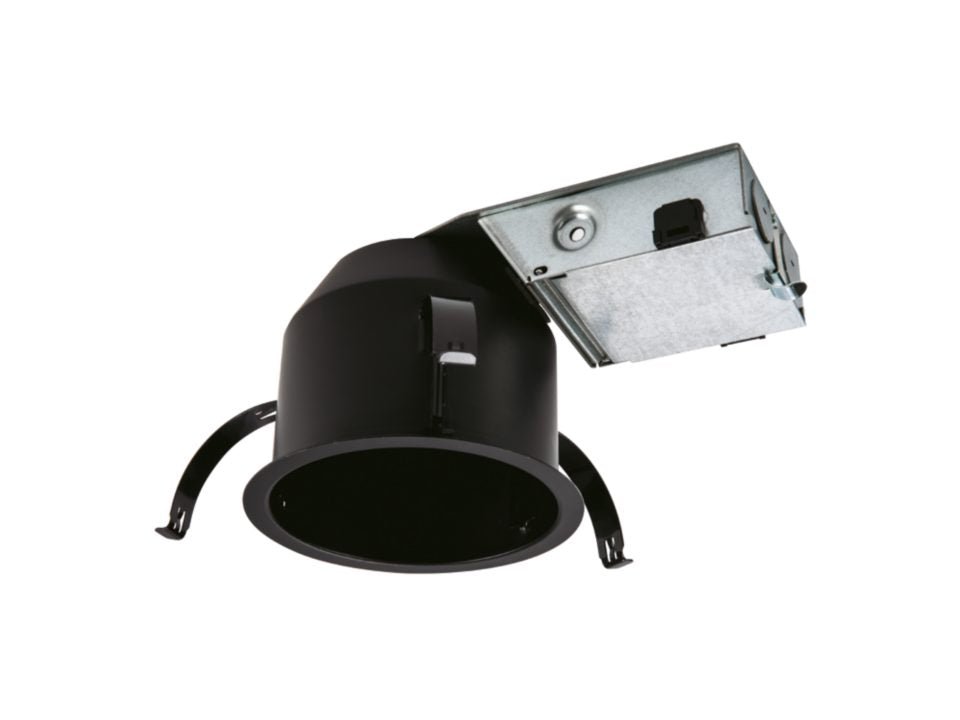

HALO H245RICAT 4" IC Airtight Ultra-Shallow Remodel LED Housing

HALO H245RICAT 4" IC Airtight Ultra-Shallow Remodel LED Housing

Regular price $18.19
Regular price Sale price $18.19
Sale Sold out
Shipping calculated at checkout.

4" IC, Airtight, Ultra-Shallow Remodel, LED Housing, 120/277V

Recessed 4" aperture ultra-shallow housing for use with LED integrated trims. Installs from below the ceiling and suitable for 2x4 residential or shallow plenum commercial construction. Suitable for direct contact with insulation; airtight rating reduces airflow between living spaces and unconditioned areas providing additional energy savings. Use with compatible Halo® LED integrated trims and modules providing general, task and accent lighting when energy savings, long life and optical control are required.

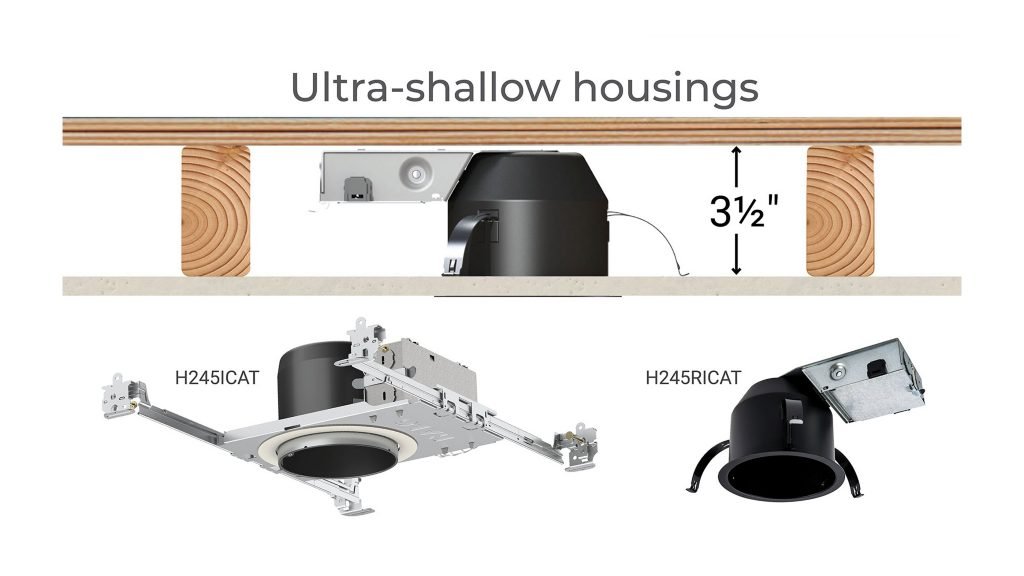

  • Suitable for 2x4 framing or shallow plenum construction
  • Suitable for below-the-ceiling installation

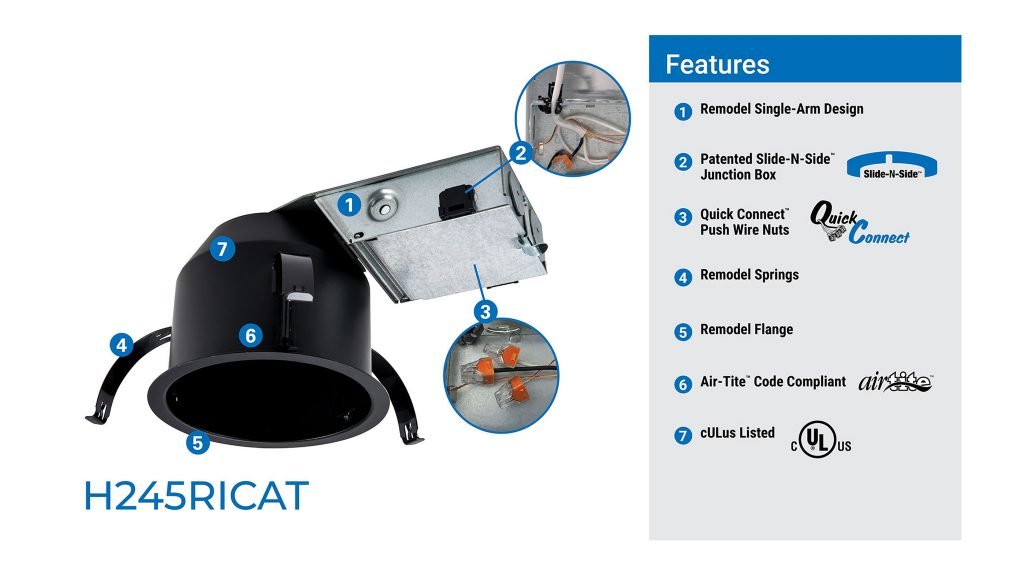

  • Retractable mounting springs designed for easy installation or removal
  • Quick Connect remodel wiring tray
  • Hinged and captive door on junction box allows for easy access
  • Insulated ceiling listed and Air-Tite
    Spec Sheets

    Spec Sheet

    Installation Instructions

    Info
    Lamp Type LED
    Amperage Rating N/A
    Aperture 4 Inch
    Mounting Recessed
    Range of Motion N/A
    Voltage Rating 120-277V
    Wattage 15 W



    Additional Info

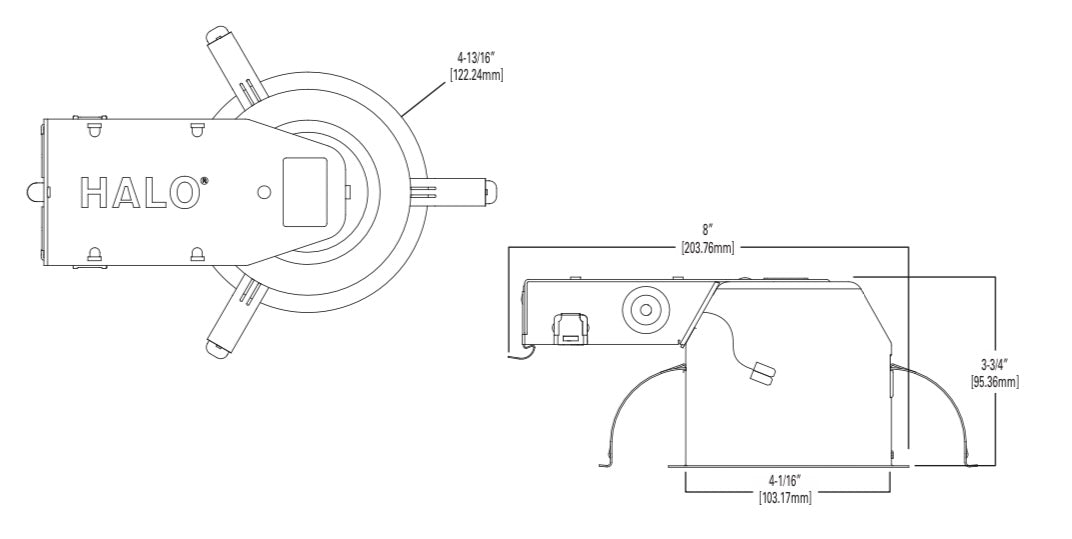

    Housing Die formed aluminum housing can be installed from below the ceiling and accommodate ceilings from 3/8” – 3/4” thick. Shipped with paint overspray protector installed.
    Mounting Springs
    Captive preinstalled mounting springs retain housing securely in ceiling. Housing can be removed for service or splice inspection.
    Gasket
    Closed cell gaskets achieve restrictive airflow requirements without additional caulking
    Junction Box
    (2) 1/2" trade size pry outs and (2) Slide-N-Side™ wire traps for nonmetallic cable. Accepts 14/2, 14/3, 12/2, 12/3 (US) and 14/2, 14/3, 12/2 (Canada) standard non-metallic sheathed cable. Maximum of (6) #12 or (8) #14 conductors rated for 90° C permitted in box (10in3 internal volume). Wago® push wire connectors for field connections.
    Connector
    Two-conductor wire mount connector is rated for 120 - 277V and mates with Halo® LT4, RL4, RA4 and ML4 family of LED integrated trims. CAUTION – verify LED module input voltage is compatible with the input voltage of the housing. If uncertain, consult a qualified electrician
    Compliance
    Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations
    Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
    Wet location listed in covered ceilings and IP56 certified with select lens trim
    Can be used for State of California Title 24 high efficacy luminaire compliance
    Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
