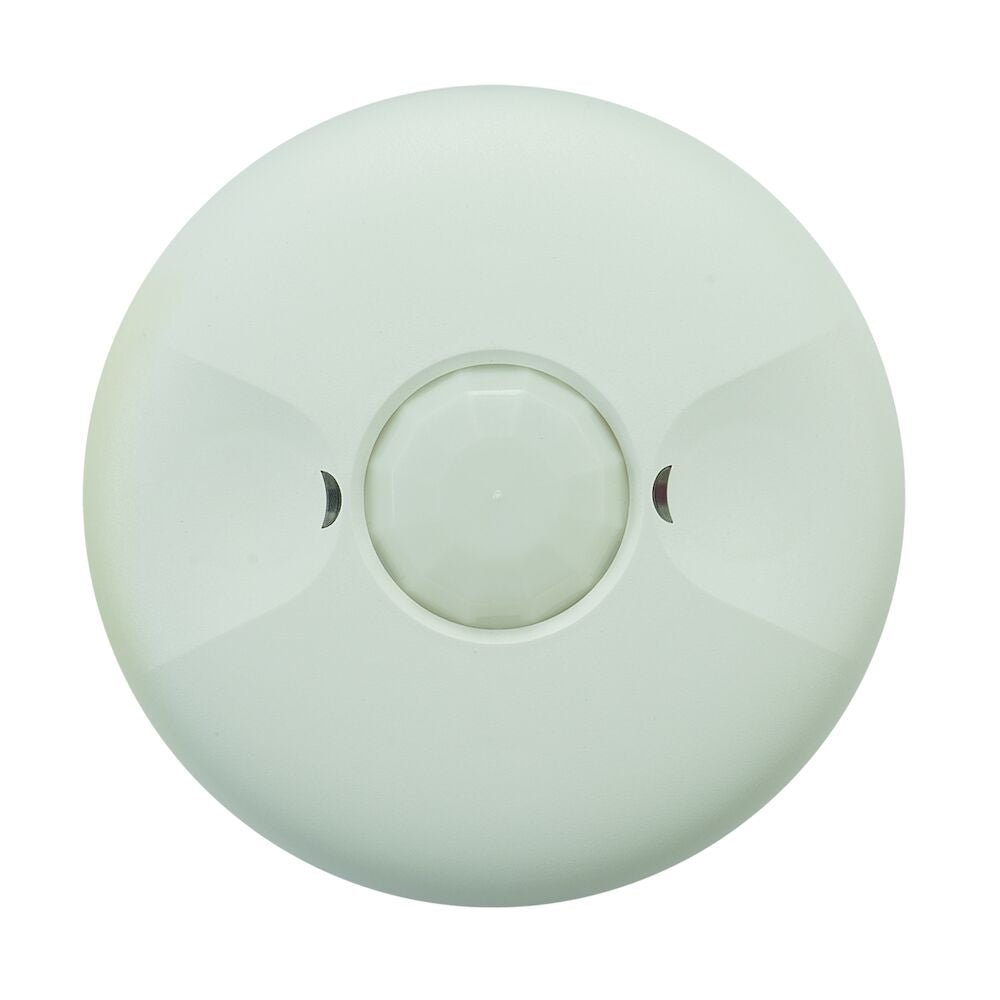

Intermatic IOS-CMP-U Ceiling Mount Occupancy Sensor

Intermatic IOS-CMP-U Ceiling Mount Occupancy Sensor

Regular price $74.99
Regular price $77.99 Sale price $74.99
Sale Sold out
Shipping calculated at checkout.

Commercial Grade Ceiling Mount Occupancy Sensor

The IOS-CMP-U 360° Passive Infrared (PIR) Line Voltage Occupancy Sensors control lighting systems based on occupancy and ambient light levels. When movement is detected, the sensor turns the lights ON. If no movement is detected for a user-specified time, the lights are turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1200 square feet.

  • PIR technology sensing for presence detection
  • Coverage: 1200 ft2 when mounted on 8 to 11 ft ceiling
  • Zero-crossing technology for long life and performance
  • Adjustable ambient light sensor override
  • Requires neutral connection
  • Incandescent/Fluorescent/CFL/LED compatible
    Height (in.) 1-3/8"
    Width (in.) 4-9/16"
    Weight (lbs) Each .40 lbs

    Spec Sheet

    Spec Sheet

    Installation Instructions

    Type Commercial Grade Line Voltage Ceiling Mount PIR Occupancy Sensor, White
    Senso/Switch type
    Occupancy; Vacancy
    Certifications cULus Listed, Title 20
    Technology PIR (Passive Infrared); Zero-crossing
    Color White
    Adjustable Time Delay
    15 Sec-30 Min
    PIR Coverage Area (sq ft) 1200
    Warranty 2 Year Limited


    Additional Info
    Load Type Incandescent; Fluorescent; CFL; LED
    Mounting Ceiling
    Mounting Height (ft) 8-11 ft
    PIR Coverage Pattern (degrees) 360°
    Sensor Switch Type  Occupancy
    Sensor Technology PIR (Passive Infrared); Zero-crossing
    Adjustable Time Delay Min 15 sec Max 30 min
    Adjustable Light Level Min 10 fc - Max 150 fc
    PIR Coverage Area (sq ft)  1200
    Voltage 120V
    Amp. Rating 15 A

     Load Ratings
    Tungsten Range(s) 800 W, 120/125 VAC
    Resistive Load Ratings Ranges  10 A, 120/125 VAC
    Motor Load Ratings Ranges 1/4 HP, 120/125 VAC
    Electronic Ballast Load Ratings Ranges  800 VA,120/125 VAC; 1600 VA, 277 VAC

    Occupancy Sensor Power Type  Line Voltage
    Input Voltage Range(s) 120/277 VAC, 60 Hz
    Neutral Connection Required Yes
