Intermatic

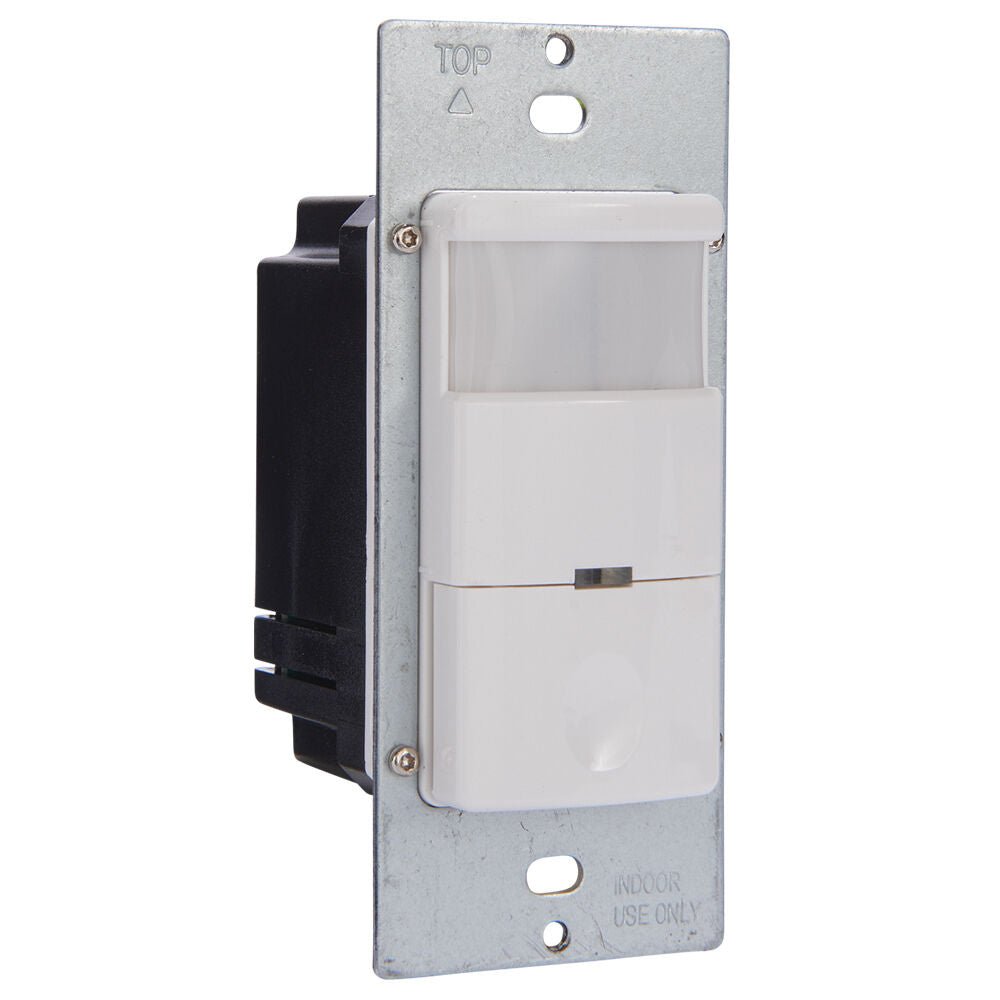

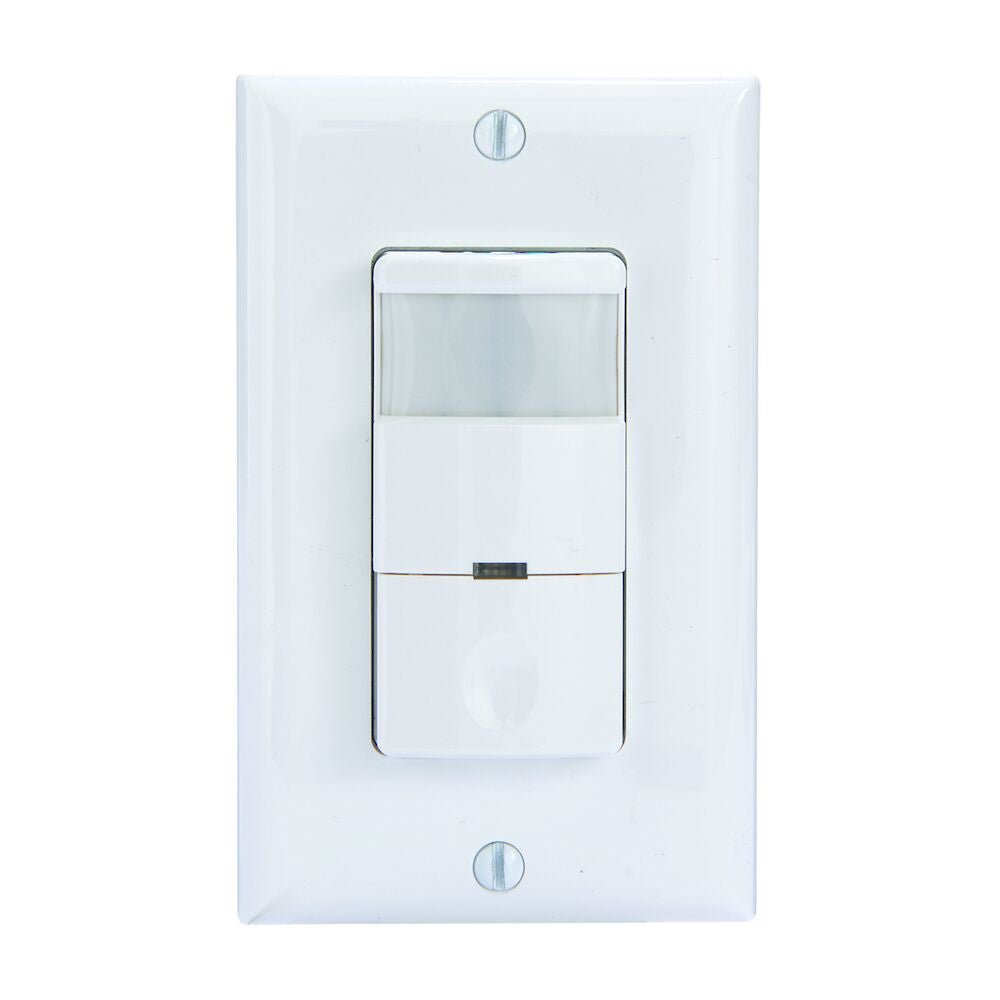

Intermatic IOS-DOV In-Wall PIR Occupancy/Vacancy Sensor

Intermatic IOS-DOV In-Wall PIR Occupancy/Vacancy Sensor

Regular price $49.99
Regular price $53.99 Sale price $49.99
Sale Sold out
Shipping calculated at checkout.

Commercial Grade Occupancy Sensor, White

The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.

  • Passive Infrared (PIR) sensing for presence detection
  • Coverage: 180º, 1200 ft2 with non-obstructed views
  • User-selectable Vacancy or Occupancy switch mode
  • Zero-crossing technology for long life and performance
  • Adjustable ambient light sensor override
  • Incandescent/Fluorescent/CFL compatible
  • IOS-DOV models require a neutral connection
  • Fits standard decorator wall plate (included)
  • Adjustable Sensitivity Settings: (30% - 100%)
  • Automatic ON/OFF Control
    Length (in.) 2.625"
    Width (in.) 1-5/16"
    Depth (in.) 1.75"
    Lead Wire (In.) 6.00"
    Weight (lbs) Each .25 lbs

    Spec Sheet

    Spec Sheet

    Installation Instructions

    Info
    Type Commercial Grade In-Wall PIR Occupancy/Vacancy Sensor, White
    Senso/Switch type
    Occupancy; Vacancy
    Certifications cULus Listed, Title 20
    Technology PIR (Passive Infrared); Zero-crossing
    Color White (wall plate included)
    Adjustable Time Delay
    15 Sec-30 Min
    PIR Coverage Area (sq ft) 1200
    Warranty 5 Year Limited



    Additional Info
    Load Type Incandescent; Fluorescent; CFL
    Mounting In-Wall
    Maximum Mounting Height (ft) 4 Feet
    PIR Coverage Pattern (degrees) 180°
    Voltage 120V
    Amp. Rating 15 A

     Load Ratings
    Tungsten Range(s) 800 W
    Resistive Load Ratings Ranges  12 A
     Motor Load Ratings Ranges 1/4 HP, 120/125 VAC
    Ballast Ranges  800 VA
    Electrical Specifications
    Occupancy Sensor Power Type  Line Voltage
    Number of Circuits 1
    Input Voltage Range(s) 120/125 VAC, 60 Hz
    Neutral Connection Required  Yes
