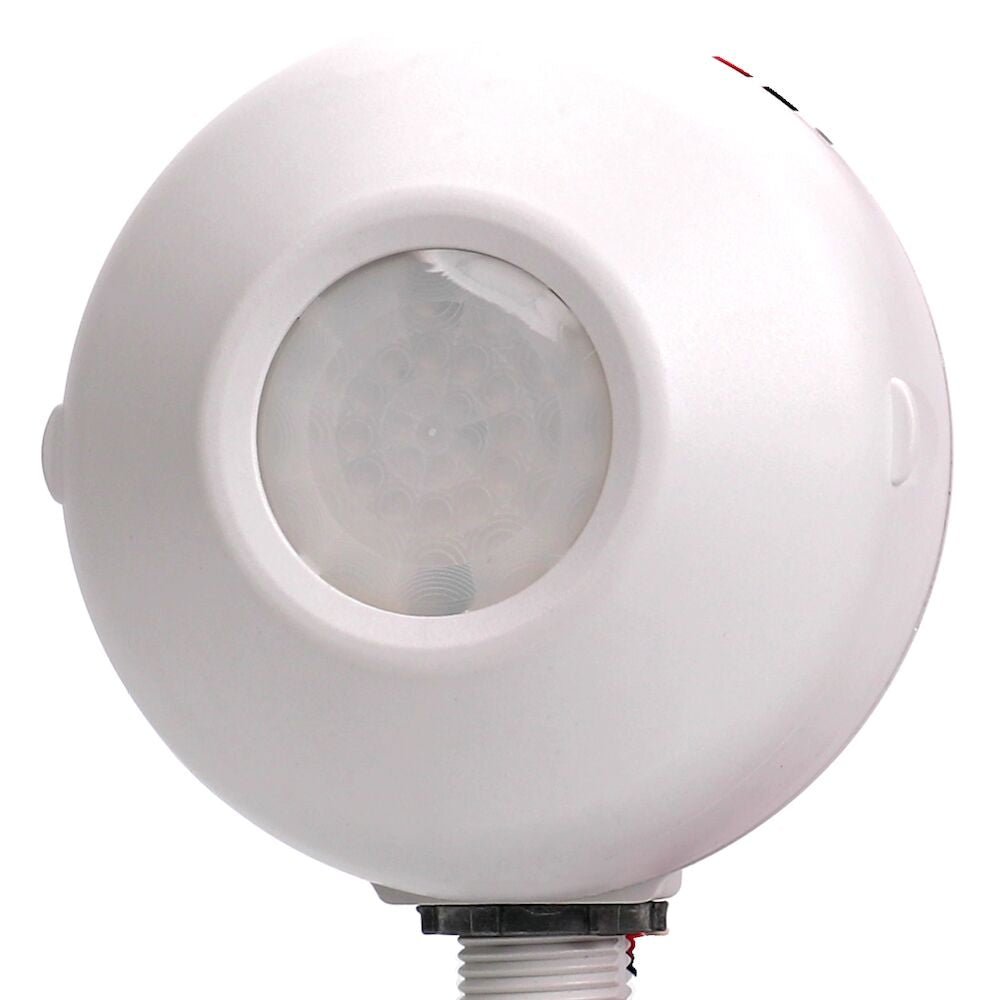

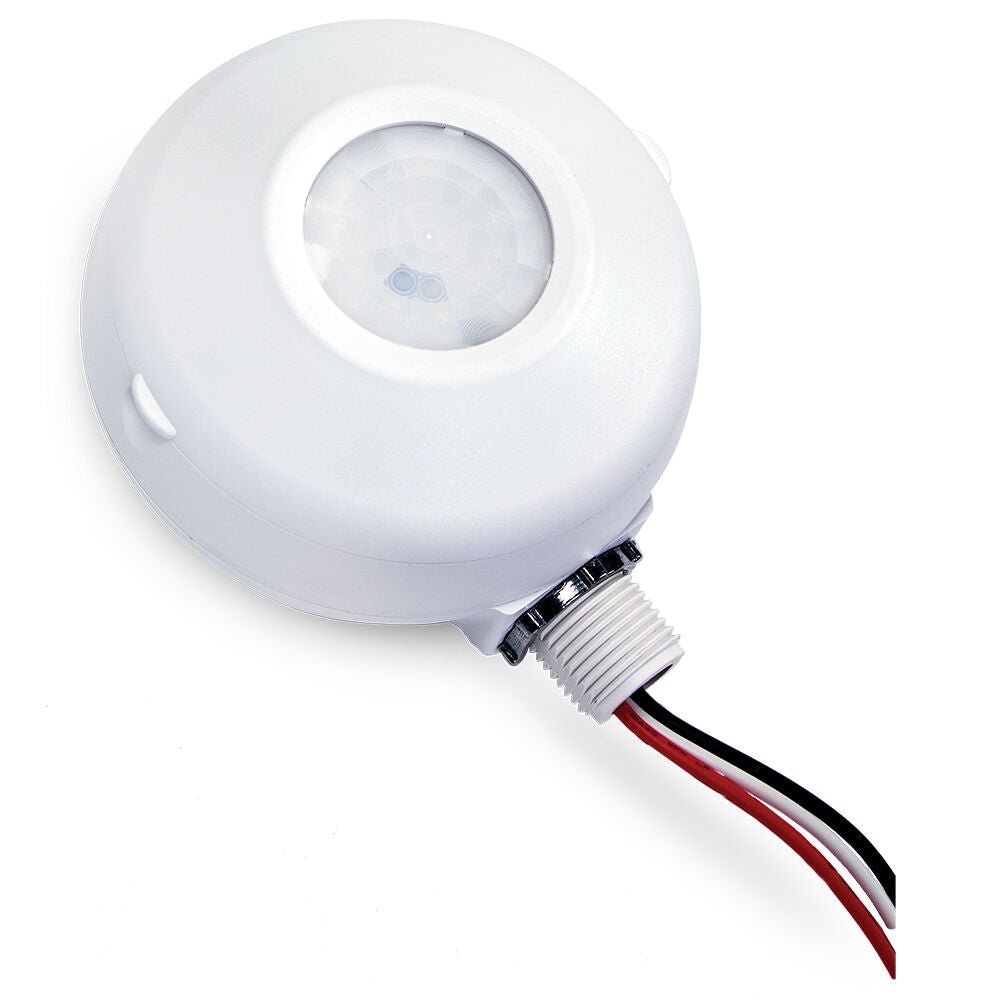

Intermatic IOS-HB-U Hi-Bay Occupancy Sensor

Intermatic IOS-HB-U Hi-Bay Occupancy Sensor

Regular price $72.79
Regular price $77.99 Sale price $72.79
Sale Sold out
Shipping calculated at checkout.

Commercial Grade Hi-Bay Occupancy Sensor

The IOS-HB-U occupancy sensor is designed for automatic lighting control in high bay applications, such as warehouses, distribution centers, gymnasiums, and areas with direct access to the lighting fixtures, specifically for indoor locations. This product contains a passive infrared sensor (PIR) and is made up of two parts: a control module and a lens.

  • Passive Infrared (PIR) sensing for presence detection
  • Two lenses included
  • Coverage: 1200 ft2 (Lens 1) or 2800 ft2 (Lens 2) when mounted at 15 to 50 ft
  • Zero-crossing technology for long life and performance
  • Adjustable ambient light sensor override
  • Incandescent/Fluorescent/CFL/LED compatible
    Height (in.) 2.755"
    Width (in.) 4.00"
    Weight (lbs) Each .60 lbs

    Spec Sheet

    Spec Sheet

    Installation Instructions

    Type Commercial Grade High Bay Ceiling Mount PIR Occupancy Sensor
    Senso/Switch type
    Occupancy; Vacancy
    Certifications cULus Listed, Title 20
    Technology PIR (Passive Infrared); Zero-crossing
    Color White
    Adjustable Time Delay
    15 Sec-30 Min
    PIR Coverage Area (sq ft) 1200
    Warranty 2 Year Limited


    Additional Info
    Load Type Incandescent; Fluorescent; CFL; LED
    Mounting Ceiling
    Maximum Mounting Height (ft) 15-50ft
    PIR Coverage Pattern (degrees) 360°
    Sensor Switch Type  Occupancy
    Sensor Technology PIR (Passive Infrared); Zero-crossing
    Adjustable Time Delay Min 15 sec Max 30 min
    Adjustable Light Level Min 10 fc - Max 150 fc
    PIR Coverage Area (sq ft)  1200 (Lens 1), 2800 (Lens 2)
    Voltage 120V
    Amp. Rating 15 A

     Load Ratings
    Tungsten Range(s) 800 W, 120/125 VAC
    Resistive Load Ratings Ranges  10 A, 120/125 VAC
     Motor Load Ratings Ranges 1/4 HP, 120/125 VAC
    Electronic Ballast Load Ratings Ranges  800 VA,120/125 VAC; 1600 VA, 277 VAC

    Occupancy Sensor Power Type  Line Voltage
    Input Voltage Range(s) 120/277 VAC, 60 Hz
