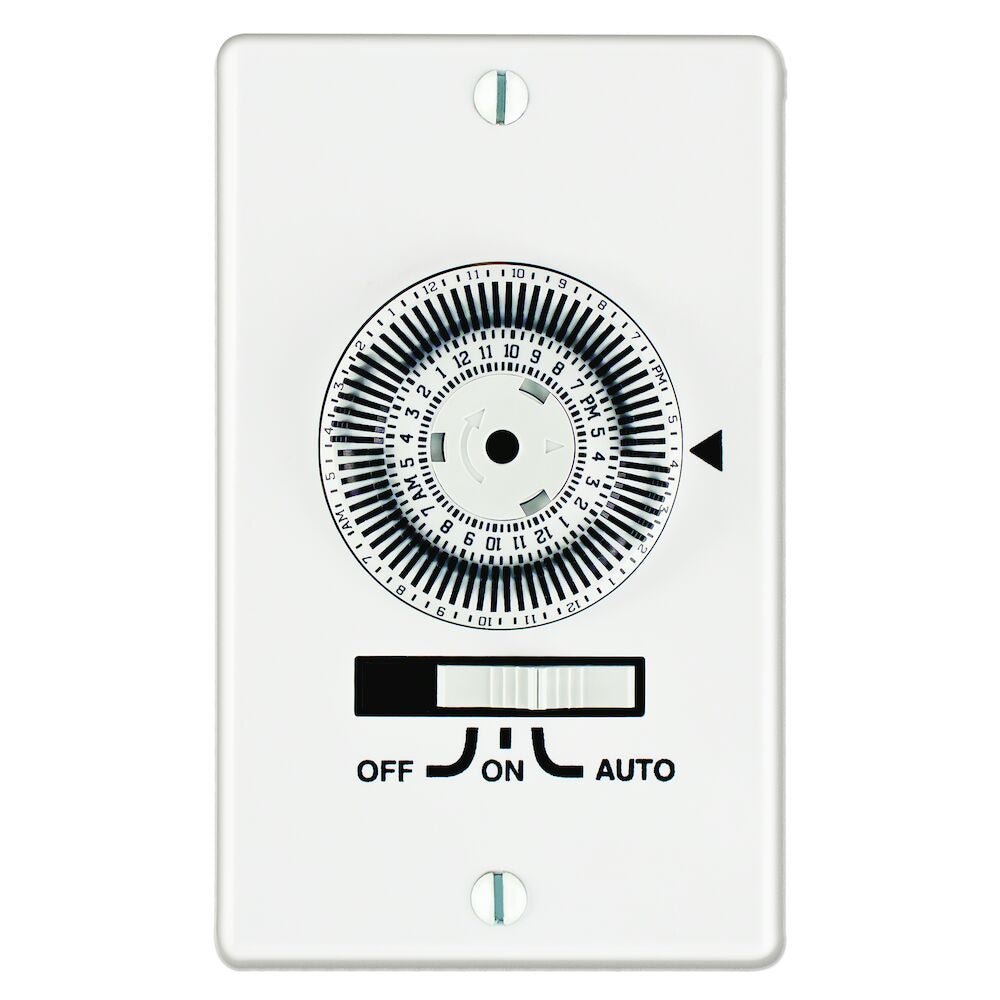

Intermatic KM2STU 24-Hour In-Wall Timer

Intermatic KM2STU 24-Hour In-Wall Timer

Regular price $49.99
Regular price $54.99 Sale price $49.99
Sale Sold out
Shipping calculated at checkout.

24-Hour Heavy-Duty Mechanical In-Wall Timer, Timer Only, 1-Gang, White

For installing on circuits up to 20 A, this timer provides automatic 24-hour ON/OFF control of outdoor/indoor lighting, fans, pumps, office equipment and other types of loads.

  • 72 trippers provide 36 ON/OFF events per 24-hour period
  • Captive trippers with 20-minute switching intervals
  • 3-way (SPDT) switch available
  • 3-position ON/OFF/AUTO override provides continuous ON or OFF operation
  • Reliable synchronous timer motor
  • Multiple wall plates available
  • Easy wiring and installation
  • Heavy-Duty 20 A rating
  • Requires neutral connection
        Length (in.) 4.50"
        Width (in.) 2.75"
        Depth (in.) 1.55"
        Weight (lbs) Each .35 lbs

        Spec Sheet

        Spec Sheet

        Installation Instructions

        Type 24 Hour Mechanical Timer
        Certifications cULus Listed, cCSAus Certified
        Operation Mode 24 Hour
        Application Compatibilities  Incandescent; Fluorescent; CFL
        Minimum ON/OFF Times 20 min
        Maximum ON/OFF Operations  36
        Mechanism Type Analog/Mechanical
        Warranty 1 Year Limited

        Additional Info
         Load Ratings
        Inductive Load Ratings Ranges 8 A, 120 VAC, 60 Hz
        Motor Load Ratings Ranges 1 HP, 120 VAC, 60 Hz
        Incandescent Load Ratings (Single-Gang) 1350 W, 120 VAC, 60 Hz
         Electrical Specifications
        Wiring Configurations  Single; 3-Way
        Switch Type SPDT
        Input Voltage Range(s) 120 VAC, 60 Hz
        Neutral Connection  Required  Yes
        Wiring Option SPST (3) #14 AWG color coded; SPDT (4) #14 AWG color coded
