Intermatic

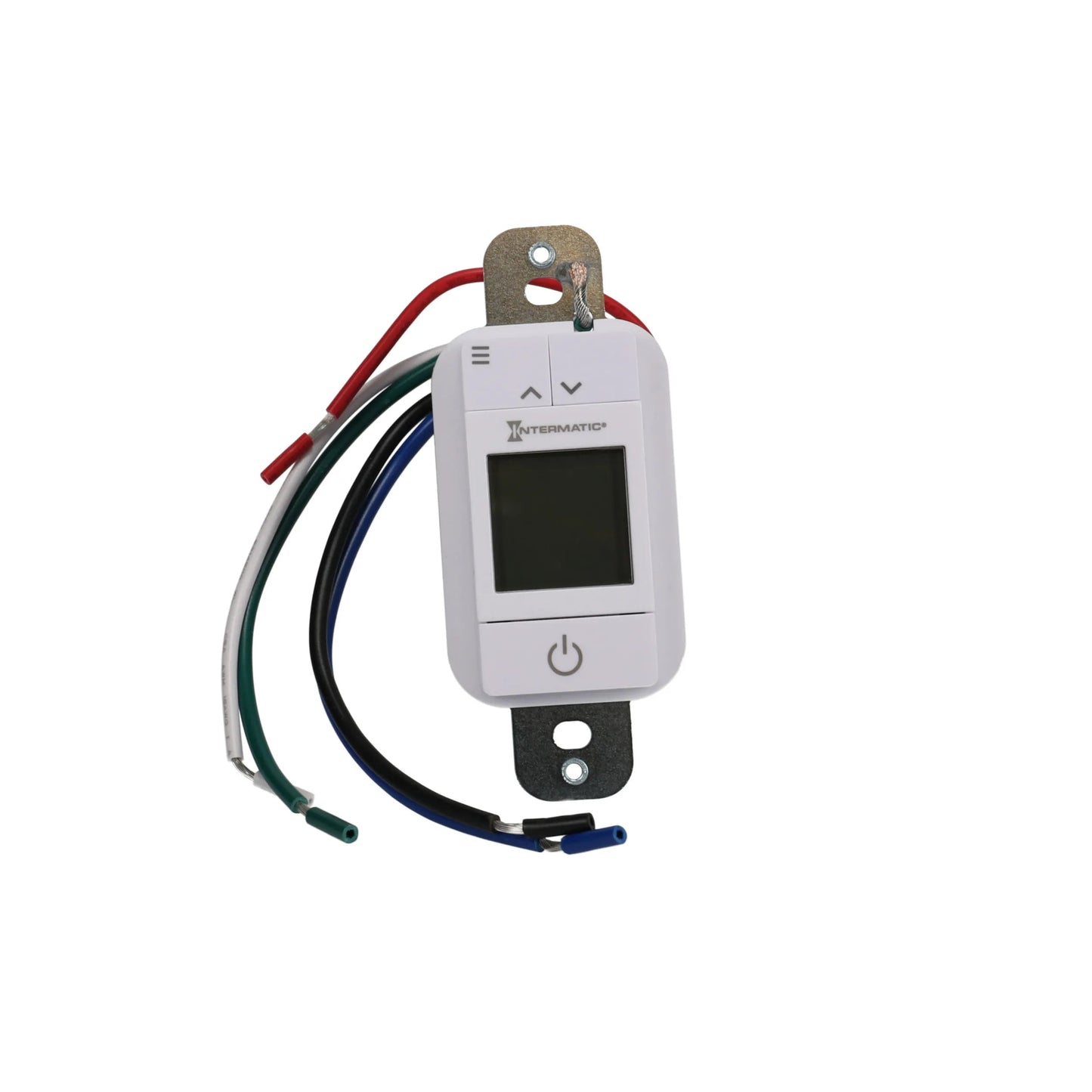

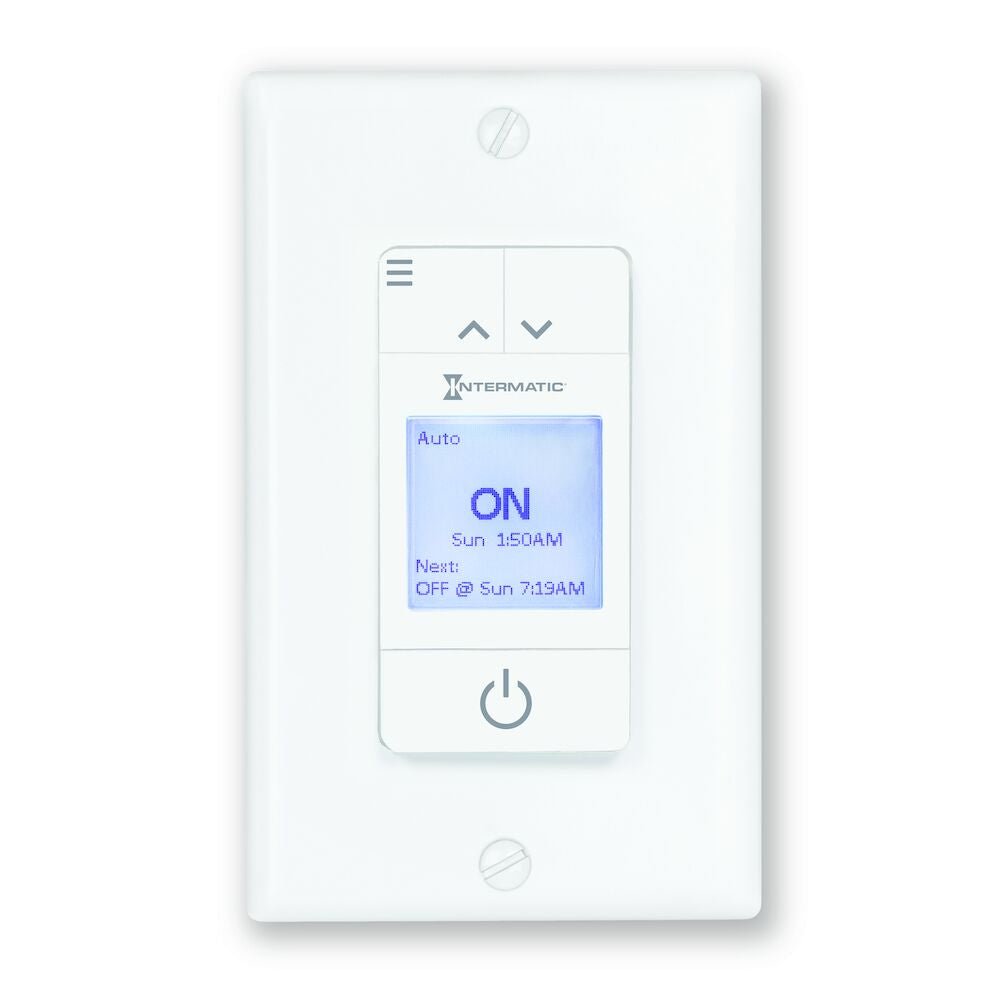

Intermatic ST700W Ascend® Standard 7-Day Programmable Timer

Intermatic ST700W Ascend® Standard 7-Day Programmable Timer

Regular price $72.93
Regular price $79.99 Sale price $72.93
Sale Sold out
Shipping calculated at checkout.

Ascend® Standard 7-Day Programmable Timer

The Ascend Standard In-Wall Timer is a 7-Day Programmable Timer featuring a sleek, modern design. The timer can be configured in minutes using a large backlit LCD display and includes pre-programmed templates for easy use. The Ascend Standard features Astronomic dusk-to-dawn settings and automatic Daylight Saving Time adjustments. Neutral required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

  • Quick, intuitive installation
  • Single-pole or 3-way switches
  • Sleek, Modern Design
  • 7-Day Timer with Automatic Daylight Saving and Astronomic ON/OFF at Dusk or Dawn
  • Intuitive Setup
  • Three pre-programmed schedule templates for convenience
  • Fully customized scheduling for flexibility
  • Program up to 42 unique events
  • Large, easy-to-read backlit LCD screen
  • Non-replaceable battery backup keeps time and date information in the event of a power loss
    Length (in.) 2.75"
    Width (in.) 1.75"
    Depth (in.) 1.85"
    Weight (lbs) Each .50 lbs

    Spec Sheet

    Spec Sheet

    Installation Instructions

    Info
    Type 7-Day Programmable Timer
    Wattage 600W
    Gang
    Single Gang
    Switch Type
    Three-Way
    Certifications cULus Listed, Title 20
    Color White
    Poles Single-Pole
    Material Polycarbonate

    Additional Info
    Load Type CFL, Fluorescent, Incandescent, LED
    Mounting Flush
    Voltage 120V
    Amp. Rating 15 A
    Battery Backup Yes; Non Replaceable

     Load Ratings
    General Purpose 15 A
    Electronic Ballast LED 5 A, 600 W
    Motor Load Ratings Ranges 1 HP, 120 VAC, 50/60 Hz
    Inductive Load Ratings Ranges 15 A, 120 VAC, 50/60 Hz
    Incandescent Load Ratings (Multi-Gang) 8 A, 120 VAC, 50 Hz; 8 A, 60 Hz
    Incandescent Multi Gang Load Ratings Ranges 8 A, 120 VAC, 50/60 Hz
    Tungsten Load Ratings  8 A



    Electrical Specifications
    Input Voltage Range(s) 120 VAC, 50/60 Hz
    Wiring Configurations 3-Way
    Neutral Connection Required  Yes
