Intermatic

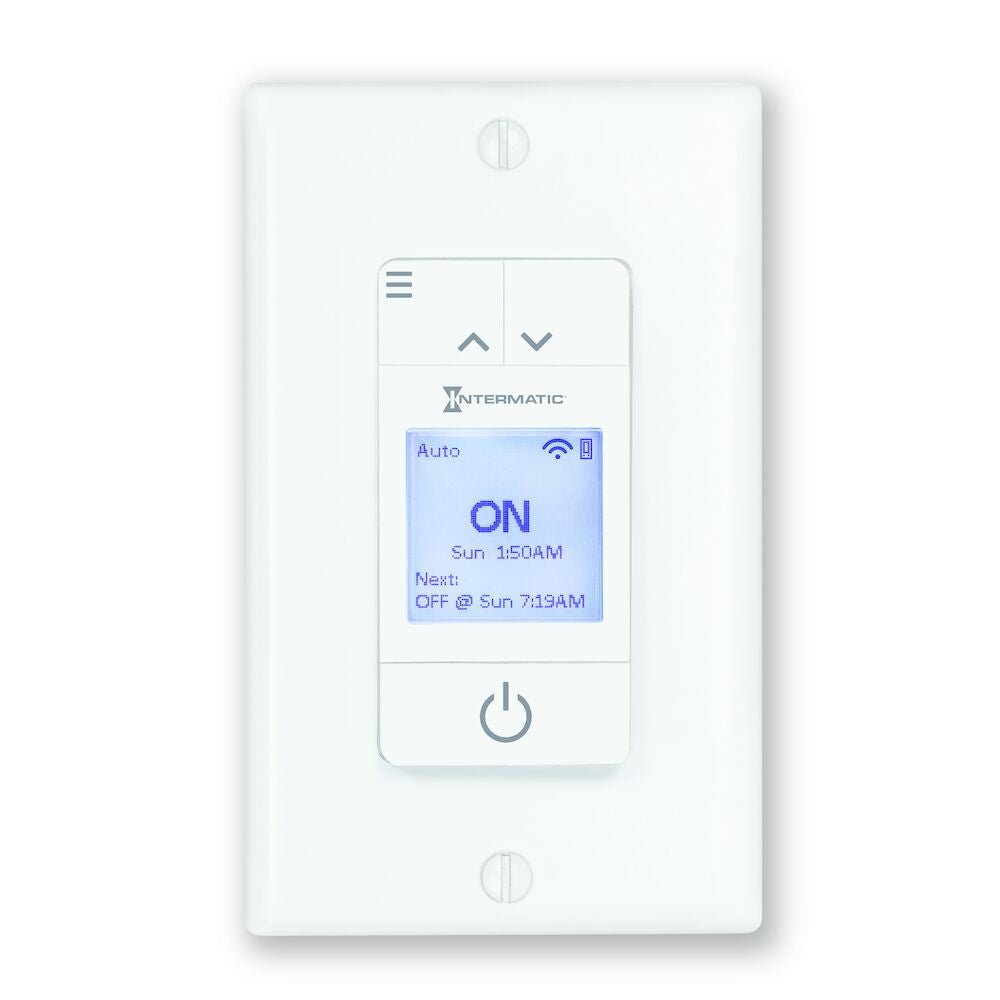

Intermatic STW700W Ascend® Smart 7-Day Programmable Wi-Fi Timer

Intermatic STW700W Ascend® Smart 7-Day Programmable Wi-Fi Timer

Regular price $87.99
Regular price $96.99 Sale price $87.99
Sale Sold out
Shipping calculated at checkout.

Ascend® Smart 7-Day Programmable Wi-Fi Timer

Next generation timers with sleek, modern design and intuitive programming. Works with Amazon Alexa and Google Assistant; no hub required. Neutral required. Easily schedule lights and connected loads to turn on/off at specific times or based on sunrise/sunset. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

  • Single-pole or 3-way switches
  • Ability to text/email saved schedules
  • 7-Day Timer with Automatic Daylight Saving and Astronomic ON/OFF at Dusk or Dawn
  • Sleek, Modern Design
  • Remote Access from anywhere, no hub required
  • Wi-Fi not needed for initial setup and scheduling
  • Fully set and schedule at the timer or via the Ascend app
  • Automatic Astronomic ON/OFF dusk and dawn times to provide the most accurate lighting schedule possible
  • Automatic Daylight Saving Time (DST) Adjustment

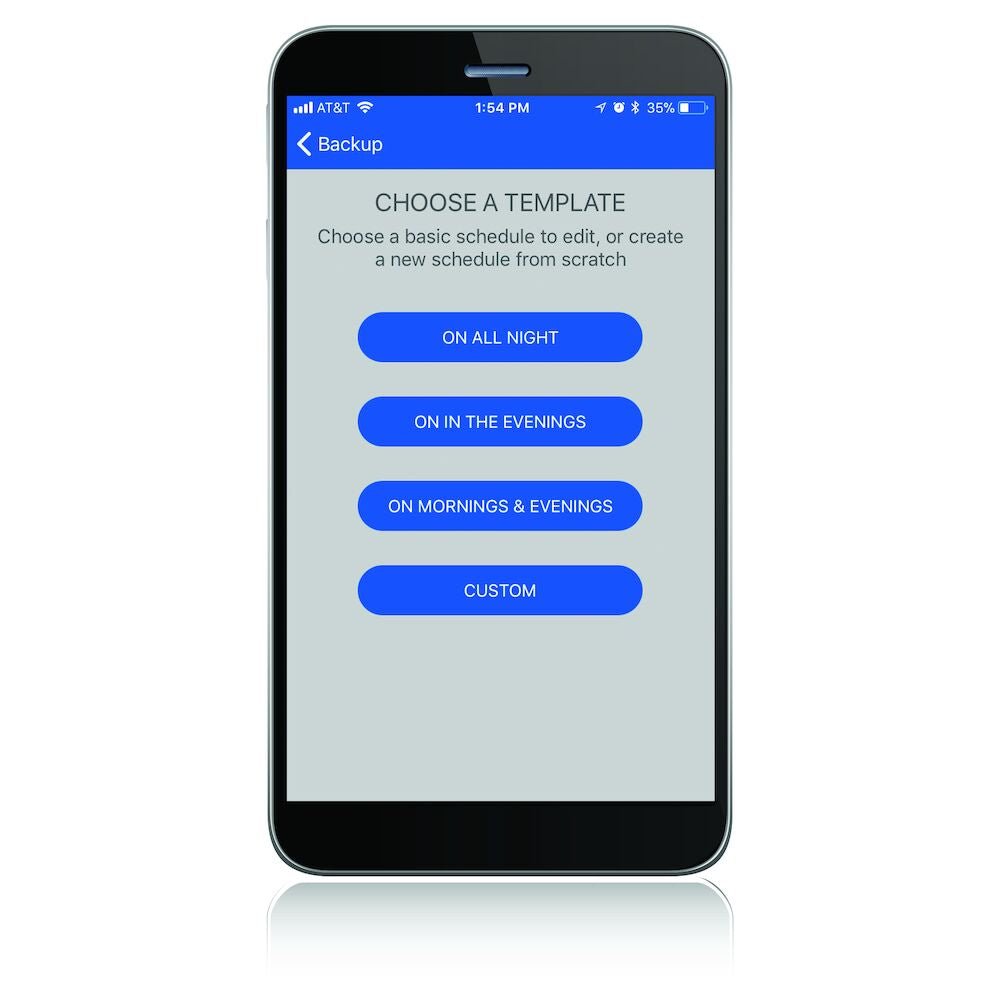

  • Three pre-programmed schedule templates for convenience
    Length (in.) 2.75"
    Width (in.) 1.75"
    Depth (in.) 1.33"
    Weight (lbs) Each .50 lbs

    Spec Sheet

    Spec Sheet

    Installation Instructions

    Info
    Type 7-Day Programmable Timer
    Wattage 600W
    Gang
    Single Gang
    Switch Type
    Three-Way
    Certifications cULus Listed, Title 20
    Color White
    Poles Single-Pole

    Additional Info
    Load Type CFL, Fluorescent, Incandescent, LED
    Mounting Flush
    Voltage 120V
    Amp. Rating 15 A
    Battery Backup Yes; Non Replaceable

     Load Ratings
    General Purpose 15 A
    Electronic Ballast LED 5 A, 600 W
    Motor Load Ratings Ranges 1 HP, 120 VAC, 50/60 Hz
    Inductive Load Ratings Ranges 15 A, 120 VAC, 50/60 Hz
    Incandescent Load Ratings (Multi-Gang) 8 A, 120 VAC, 50 Hz; 8 A, 60 Hz
    Incandescent Multi Gang Load Ratings Ranges 8 A, 120 VAC, 50/60 Hz
    Tungsten Load Ratings  8 A



    Electrical Specifications
    Input Voltage Range(s) 120 VAC, 50/60 Hz
    Wiring Configurations 3-Way
    Neutral Connection Required  Yes
