Lithonia Lighting
Lithonia WF3 8W LED 3" Round Wafer 27K/30K/40K
Lithonia WF3 8W LED 3" Round Wafer 27K/30K/40K
Couldn't load pickup availability
WF3 3" Canless Wafer 27K/30K/35K

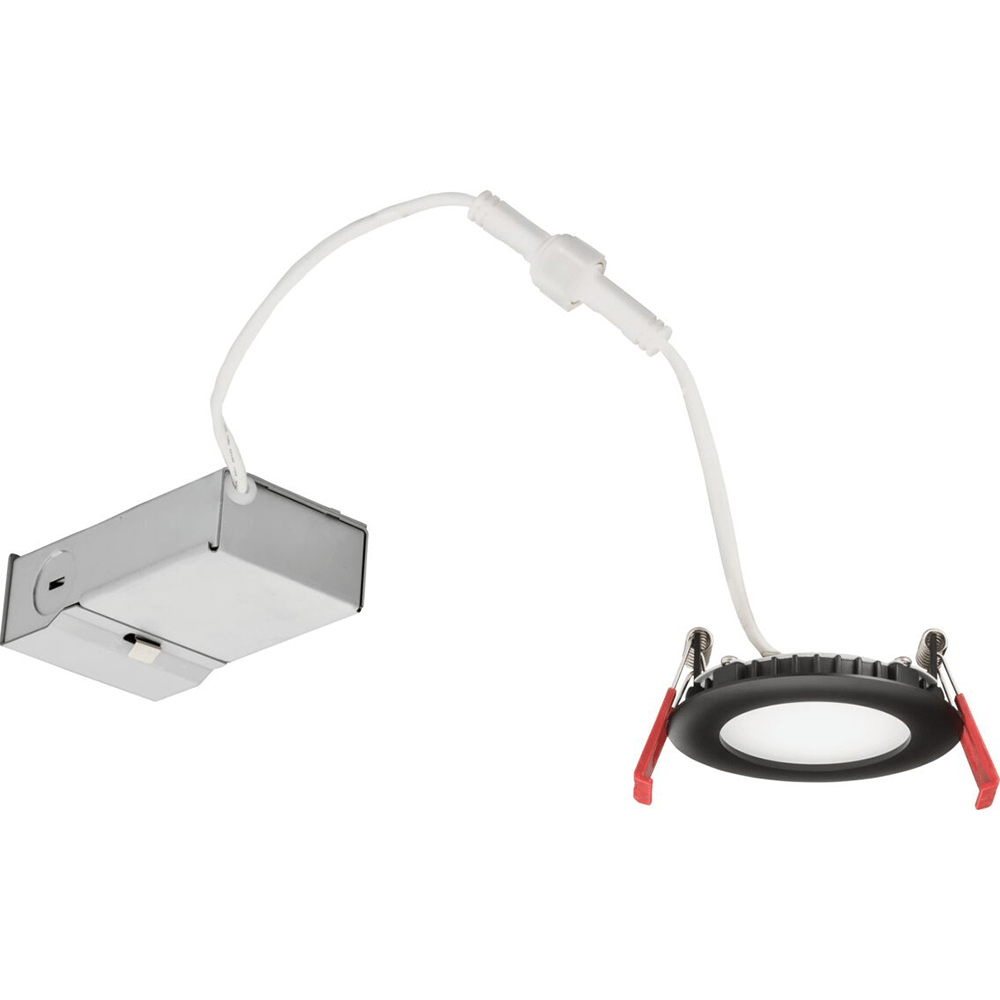

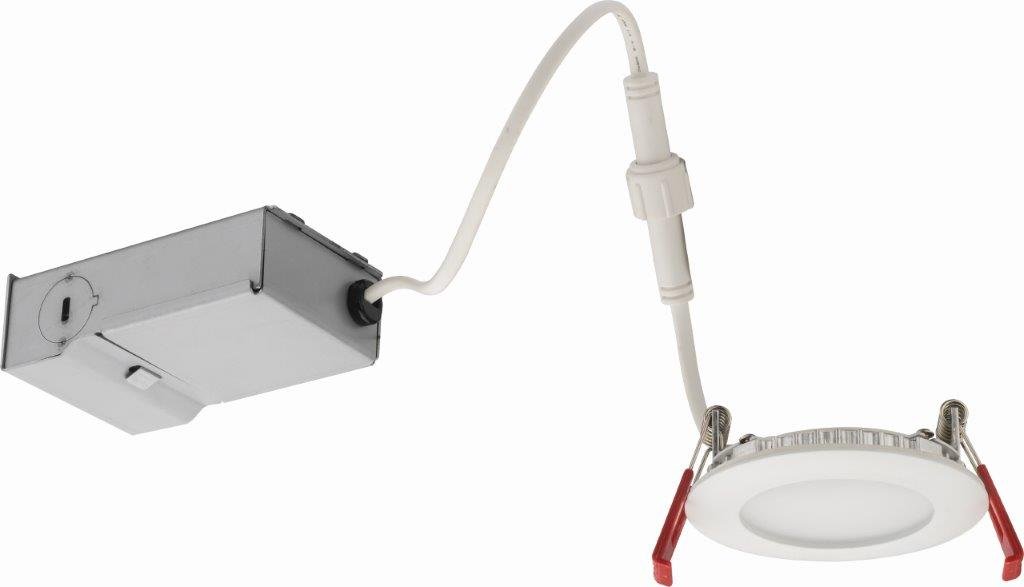

The 3" Wafer-Thin LED recessed downlight with remote driver box combines high quality light output and efficiency while eliminating the pot light housing for competitive affordability. This innovate wafer-slim Type IC design allows easy installation for new construction or remodel from below the ceiling without the requirement of a pot light housing for insulation. The LED module maintains at least 70% light output for 36,000 hours. These LED Wafer downlights are intended for closets, attics, hallways, bathrooms, kitchens, basements, soffits, entry ways, porches, garages, stairwells, corridors, nursing/retirement homes, condos, elevators, apartments, and any other small areas.
Dimensions
|
Click Here for new construction plate
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Product Type | Wafer direct mount |
| Wattage | 8W |
| Lumen | 540-590 |
| Color Temp. | 27K/30K/40K |
| CRI | 90 |
| L70 Lifespan | 36,000 |
| Housing Material | Plastic Housing |
| Finish | White Trim |
| Style | Smooth |
| LED | Edge-lit LED technology |
| Optics | Wafer-Thin downlight edge-lit LED technology uses light guided plate to distribute light. Polycarbonate lens provides even illumination throughout the space. Utilizes 2700K, 3000K, and 4000K color temperature LEDs. |
| Mounting | Steel spring clip for easy installation. 3" cut out template is provided to ensure a correct sized hole is cut into ceiling for proper installation of the trim. Size of hole should not exceed 3 1/8 inches for this product. Suitable for installation in t-grid and drop ceiling applications. |
| Remote Driver Box | 6" plenum space required for installation of remote driver box. |
| Construction | IC rated driver and fixture - approved for direct contact with insulation. Aluminum die cast outer frame. Durable, powder coat paint to prevent rust. Round fixture with integral edge-lit LED's. Plenum rated cable connector to connect from module to remote driver box. Isolated driver integrated inside steel remote box with four 7/8" knockouts with slots for pryout. Suitable for pulling wires with the 12 cubic-inch wiring compartment to accommodate up to (6) 14 gauge insulated conductors, or (4) 12 gauge insulated conductors; making the Wafer LED Downlights much easier to wire in 2in/2out (plus ground) daisy-chain applications and contractor friendly |
Additional Info
Compliance
|
||||||||||||
Electrical
|
