Lithonia Lighting

Juno WF6 16W LED Round Wafer Selectable CCT Selectable Lumen Output

Juno WF6 16W LED Round Wafer Selectable CCT Selectable Lumen Output

$24.00
$24.00
Sale Sold out
Shipping calculated at checkout.
Size
Wattage
Color Temperature

WF6 6" Wafer Selectable CCT and Lumen

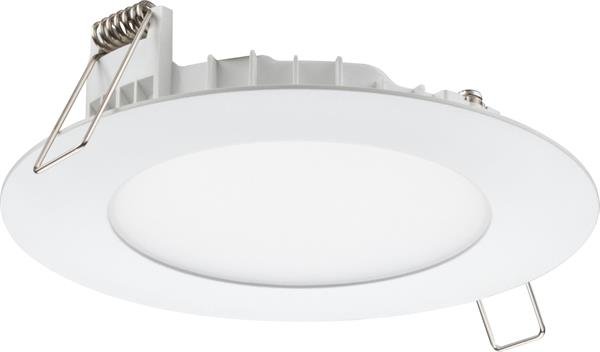

The 6" flat wafer with 5CCT Switchable White and ALO technology provides high-quality light output and efficiency while delivering industry leading technology and functionality without the need for a recessed housing.

  • Next-generation optical technology and design enable precise, even illumination where needed
  • Canless - no can required; equals easy to install and less labor • With selectable color temperatures ranging from warm (2700K) to daylight (5000K), getting the right look for your space is a breeze
  • 3 ALO settings allow you to get the perfect amount of light in your space
Switchable CCTsEnergy Star®CA Title 24/JA8
 Dimensions
Trim Width (In.) 6.69"
Aperture Width (In.) 4.88"
Height (In.) 1.25"
Cutout (In.) 4.25"

Click Here for new construction plate

Spec Sheets

Spec Sheet

Installation Instructions

Info
Product Type  Downlight
Wattage 16.5W
Lumen 800/1050/1300
Color Temp. Field Adjustable 27K/30K/35K/40K/50K
CRI 90
L70 Lifespan 50,000
Housing Material Plastic Housing
Finish  White Trim
Style Smooth
LED Edge-lit LED technology
Mounting Installs directly below the ceiling for easy retrofit, remodel or new construction, no housing required

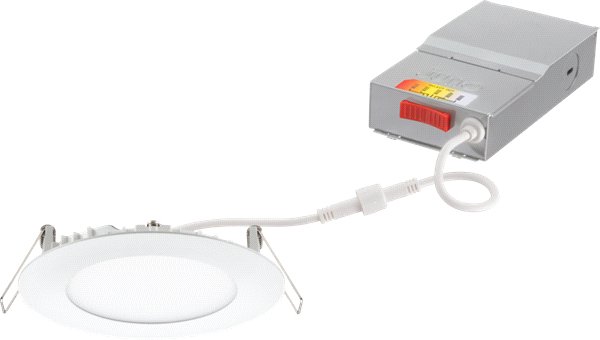

Remote Driver Box 3" plenum space required for installation of the remote driver box.
Additional Info
                                               Compliance
Safety Listing CSAus
Environment/Fixture Rating Wet Location
T24 JA8 Compliant Yes
IC Rated Yes
Energy Star Compliant Yes
Air Tight Yes
                                               Electrical
Power Factor ≥0.9
Input Voltage 120V
Operating Temperature -40°C to 40°C
Dimming Triac








View full details
