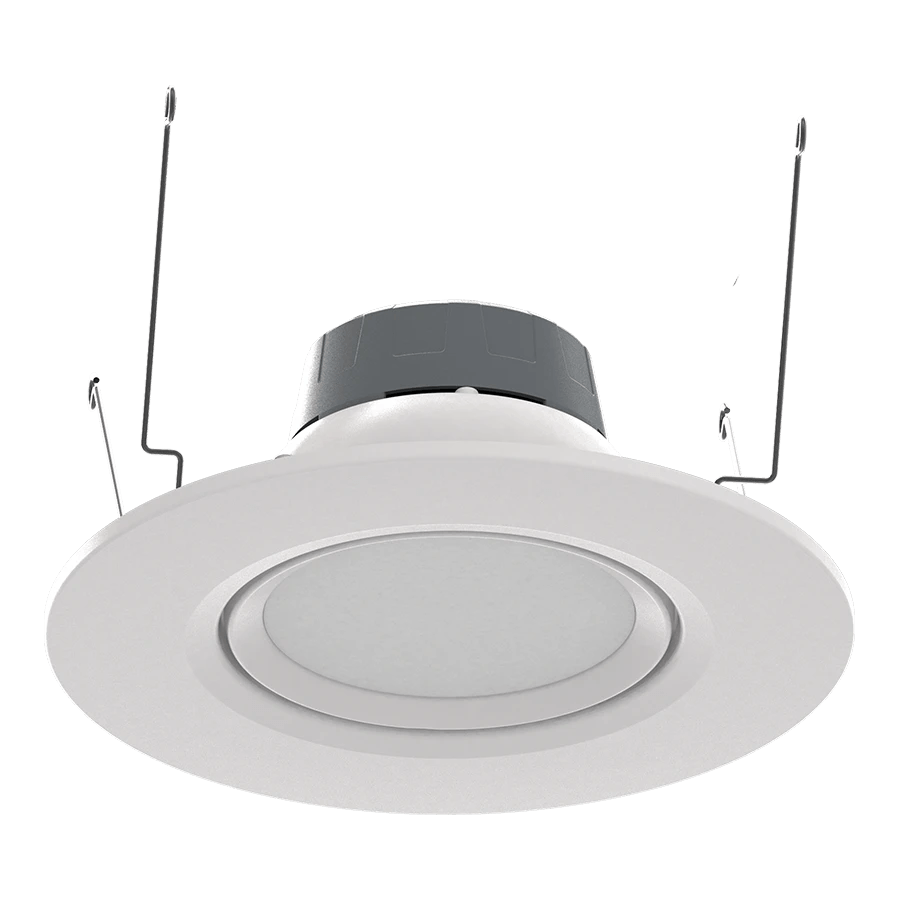

RAB 10W LED 6" Round Retrofit Downlight Adjustable Gimbal Selectable CCT

RAB 10W LED 6" Round Retrofit Downlight Adjustable Gimbal Selectable CCT

Regular price $29.30
Regular price Sale price $29.30
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

6" Retrofit Downlight Adjustable Gimbal - Field Adjustable

  • Adjustable gimbal lens with a 30 degree tilt angle
  • Use to replace up to 75W traditional light sources
  • Durable metal construction: dent and scratch resistant
  • UL wet location rated Compatible with most standard recessed housings
  • Dimmable down to 5% on compatible dimmers
  • Available in Round 4" 700lm and 6" 750lm and 950lm
  • 5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K
  • Color designer trims as optional accessories available
  • 5-Year, No-Compromise Warranty
Spec Sheets

Spec Sheet

Installation Instructions

Info
 Product Type  Retrofit Gimbal
Wattage 10W
Lumen 950
Color Temp. Field Adjustable
CRI 90
L70 Lifespan 50,000
Housing Material Constructed from durable steel sheet metal
Finish  White Trim
Style Smooth
Base Type
E26
Beam Angle Adjustable Gimbal with 35° tilt angle
Lens Regressed lens constructed from impact resistant polycarbonate. Convex lens gives the optic a similar lamp-like appearance. Provides smooth and diffuse light distribution
Mounting Torsion springs are pre-installed and adjust to fit 5" or 6" compatible housing
Gaskets Achieve restrictive airflow requirements without additional caulking
Additional Info
                                               Compliance
 Safety Listing UL Listed
 Environment/Fixture Rating Wet Location
T24 JA8 Compliant Complies with Title 24 Appendix JA8
IC Rated Yes
Energy Star Compliant Yes
Air Tight Yes
FCC Complies with Part 15 of the FCC Rules
RoHS Mercury and UV free. RoHS-compliant components
                                               Electrical
THD ≤20%
 Power Factor ≥0.9
Input Voltage 120V
Operating Frequency 60Hz
Operating Temperature -30°C to 40°C
Dimming TRIAC compatible dimmer with dimming as low as 10%
