RAB Lighting

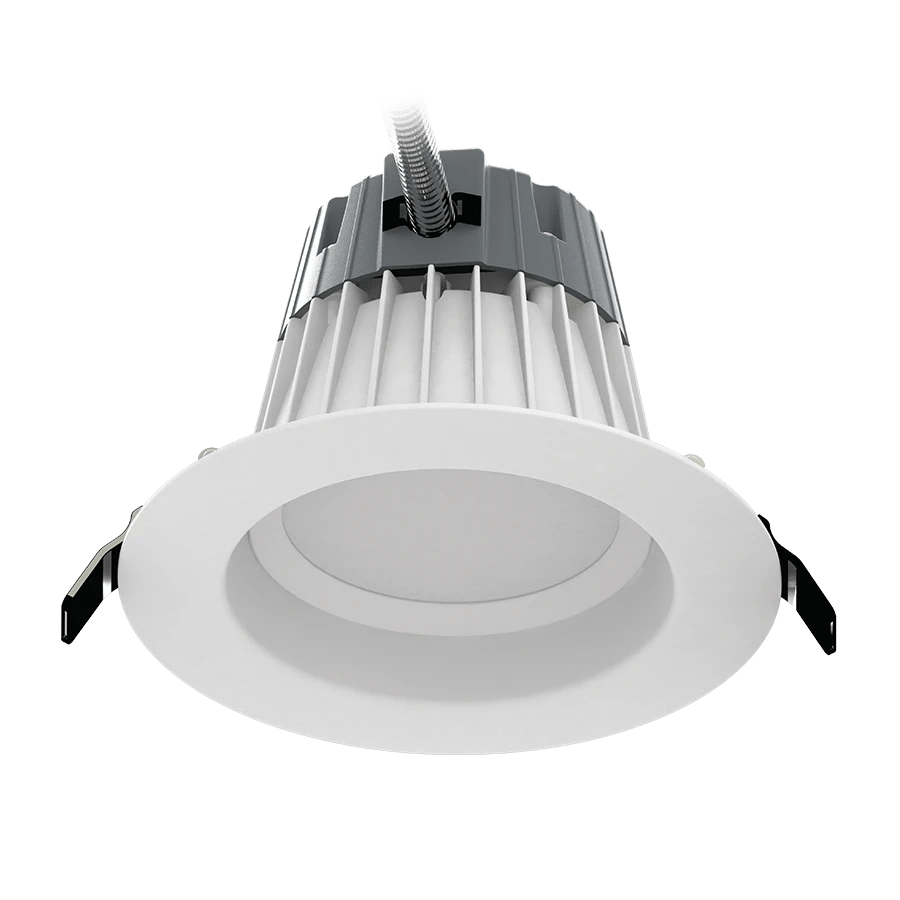

RAB 18W LED 6" Round Bluetooth Downlight Selectable CCT

RAB 18W LED 6" Round Bluetooth Downlight Selectable CCT

$114.75
$114.75
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

6" Downlight Field Adjustable  Bluetooth-enabled

  • Direct Connect to the Lightcloud® Blue mobile app via Bluetooth, no Gateway or Hub required
  • Use mobile device to configure features for On/Off Control, Dim Level, Color Temperature, Schedules, Scenes, SmartShift and more.
  • Natural Spectrum Technology mimics natural sunlight to see colors more accurately
  • Tunable White 2700-6500K with smooth transition between color temperatures
  • Circadian SmartShift Capable to sync with local sunrise/sunset
  • Lightcloud® App
Spec Sheets

Spec Sheet

Installation Instructions

Info
 Product Type  Bluetooth-Enabled Commercial Downlight
Wattage 18W
Lumen 1300
Color Temp. 2700K-6500K
CRI 95
L70 Lifespan 50,000
Material Metal
Finish  White
Base E26, Medium Screw Base
Style Baffle Trim
Additional Info
                                               Compliance
Safety Listing





 UL Listed
 Environment/Fixture Rating Suitable for use in dry, damp, and wet environments.
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified
Energy Star ID
2371522
DLC Listed This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
Model Number for Certification
 LCBC6R189TWUNVWS-SS-NS
T20 Compliant
 Not Compliant
California Title 24 JA8 Compliant
 Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
 Lawful for Sales in California
NEC Compliant
 Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
 RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
RoHS
 Mercury and UV free. RoHS-compliant components.
FCC
 Complies with Part 15B of the FCC Rules
                                               Electrical
Driver
 Constant Current, Class 2, 60 Hz, 120V-277V, 120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A
THD
 ≤20%
Power Factor
 ≥0.9
Dimmable Yes via the Lightcloud Blue mobile app and devices.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Operating Temperature -4°F to 104°F (-20°C to 40°C)
Input Voltage 120-277V
Input Current @ 120V (mA) 170 mA
Input Current @ 208V (mA) 100 mA
Input Current @ 240V (mA) 90 mA
Input Current @ 277V (mA) 80 mA
Operating Frequency
 50/60Hz
Flicker
 ≤5%
