RAB Lighting

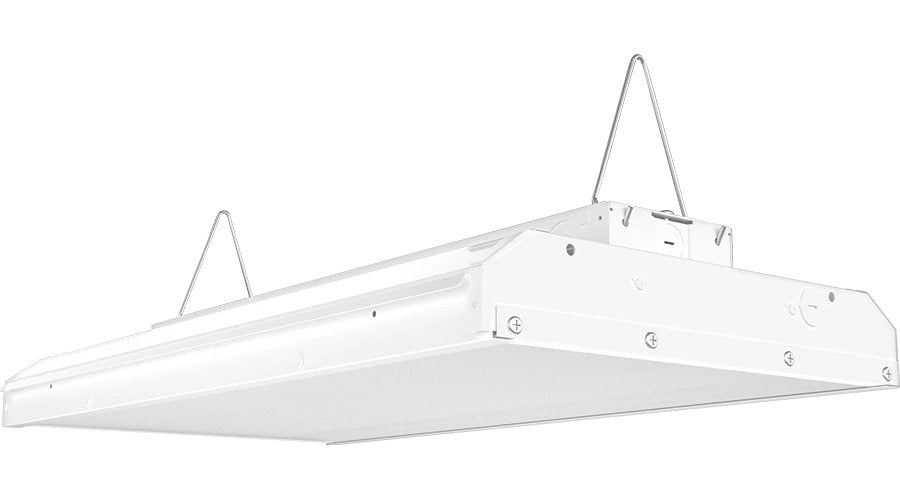

RAB Aerobay 2FT 160W LED Hi-Bay 40K/50K

RAB Aerobay 2FT 160W LED Hi-Bay 40K/50K

Regular price $262.00
Regular price Sale price $262.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Infrared Option

Aerobay 2FT 160W Hi-Bay Warehouse Light

Spec Sheet
 Color Temp W/O Sensor W/ Sensor
40K Spec Sheet Spec Sheet
50K Spec Sheet Spec Sheet


Installation Instructions

Info
Product Type  Hi-Bay Lighting
Wattage 160W
Lumen 23000
Efficacy 138 lm/W
Color Temp. 4000K/5000K
CRI 85 CRI
L70 Lifespan 100,000 Hours
LED's Multi-chip, high-output, long-life LEDs
Housing 22 gauge die formed with white powder coat finish. Y Hooks included for easy chain or cable mounting.
Finish  Our environmentally friendly polyester powder coatings are formulated for high-durability and long lasting color
Mounting V hooks and optional pendant mounting. AEROBAY® comes with two 42" chains.
Lens Polycarbonate lens
Reflector
White painted, reflective, die formed painted steel
Dimming 0-10V
Additional Info



                                                Compliance
UL Listed Suitable for damp locations
IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed  Designed to meet DLC 5.1 requirements. DLC Product Code: 40K-P9D1NV0P 50K-P0QH55ZN
                                                  Electrical
Driver Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 1.32A, 208V: 0.77A, 240V: 0.67A, 277V: 0.58A
THD 5.8% at 120V, 7.3% at 277V
Surge Protection

2.5k

For areas prone to surges, upgrade to 10kV surge protection available



Sensor Specs
Passive Infrared Occupancy and Daylight Sensor
PIR sensor with IR remote capability. High/Low bay passive infrared occupancy and daylight sensor
UL Listed
Indoor use only
Operating Humidity
5% to 96%, noncondensing
Operating Temperature
32°F to 158°F (0°C to 70°C)
Line Voltage
Line Voltage for direct connection to load
Voltage
120, 277, 347V, 60Hz or 230V, single phase, 50Hz operation
Power Consumption
0.2W
Maximum Versatility
Adjustable time delay and sensitivity
Adjustable hold-off daylighting level
Weight
6.4 oz (181 g)
Hardware
UL listed snap-in mounting hardware
Mounting
Easy mounting using knockout at end of linear high bay luminaire
Lens
Lens (attached) designed for mounting heights from 15 to 40 feet
Rotatable Mask
Snap-on rotatable mask for aisleway applications (included)
Coverage
Covers a 100-foot diameter area when mounted at height of 40 feet
Factory Default
15 minutes time delay
Max sensitivity
300 footcandle light level
