RAB Lighting

RAB DaisyKit6 6" 11W Downlight Wafer 6 Pack Selectable CCT

$235.71

Sale Sold out

Shipping calculated at checkout.

Size 6"

Style Smooth Baffle

Material Kit (6 Wafers/1Driver) 1 Wafer

Quantity

6" 11W Wafer DasiyChain Connect

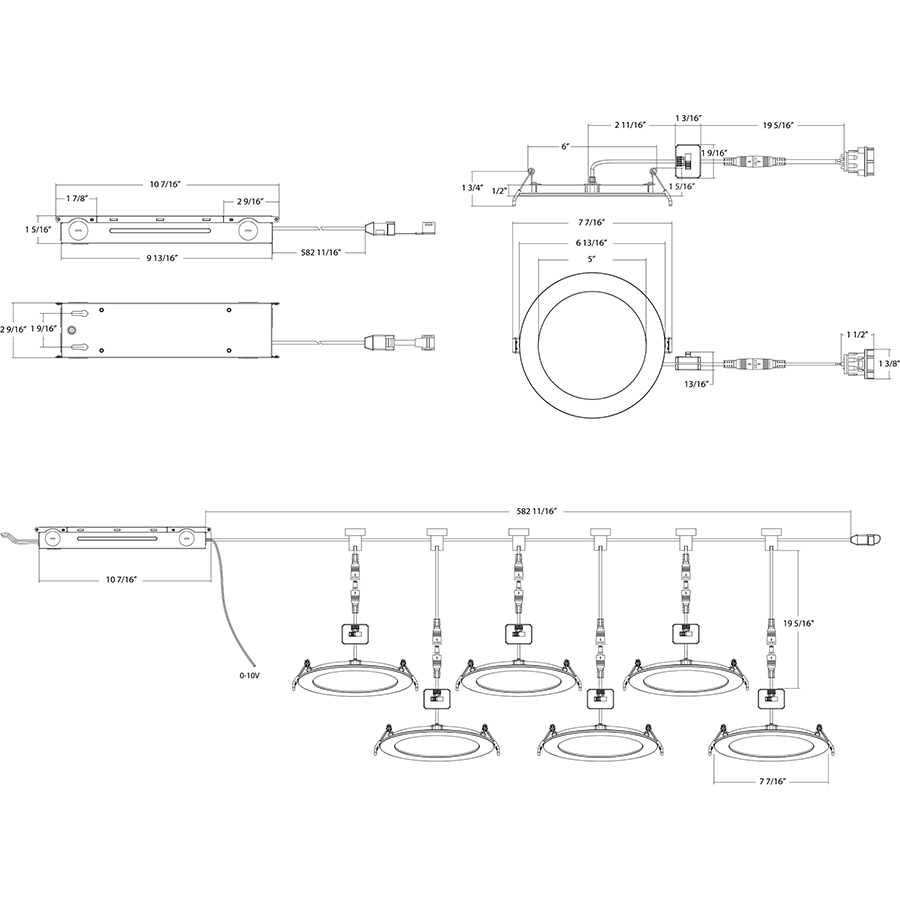

With 6 canless, quick-connect DAISY wafers controlled by only one driver, you’ll save on things like housings, wire, clamps, wire nuts, and most importantly, installation time.

Power multiple wafers with a single driver (6" up to 8 pcs.)
5 color temperatures in 1 SKU (2700/3000/3500/4000/5000K)
Super slim, edge-lit fixture
No recessed housing or J-box required
New construction or retrofit applications

Spec Sheets

Complete Spec Sheet

Smooth Spec Sheet

Baffle Spec Sheet

Installation Instructions

Info

Product Type	Daisy Wafer Kit
Description	Daisy wafer kit includes (1) 120-277V, 0-10V dimmable driver and (6) edge-lit CCT field adjustable wafers.
Wattage	8.5W X 6
Lumen	3912 Total
Color Temp.	Field Adjustable
CRI	90
L70 Lifespan	50,000-Hour LED lifespan based on IES LM-70 results
Housing Material	Polycarbonate
Finish	White Trim
Style	Smooth

Additional Info

Compliance

Safety Listing	UL Listed
IC Rated	Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Energy Star Compliant	Yes
Air Tight	Yes

Electrical

Driver	Constant Current, Class 2, 60 Hz, 120V-277V, 120V: 0.60A, 208V: 0.36A, 240V: 0.32A, 277V: 0.28A
THD	≤20%
Power Factor	≥0.9
Input Voltage	120-277V
Input Current @ 120V (mA)	601 mA
Input Current @ 208V (mA)	356 mA
Input Current @ 240V (mA)	315 mA
Input Current @ 277V (mA)	282 mA
Operating Temperature	-13°F to 104°F
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%. Note All values are typical (tolerance +/- 10%)
