RAB Lighting

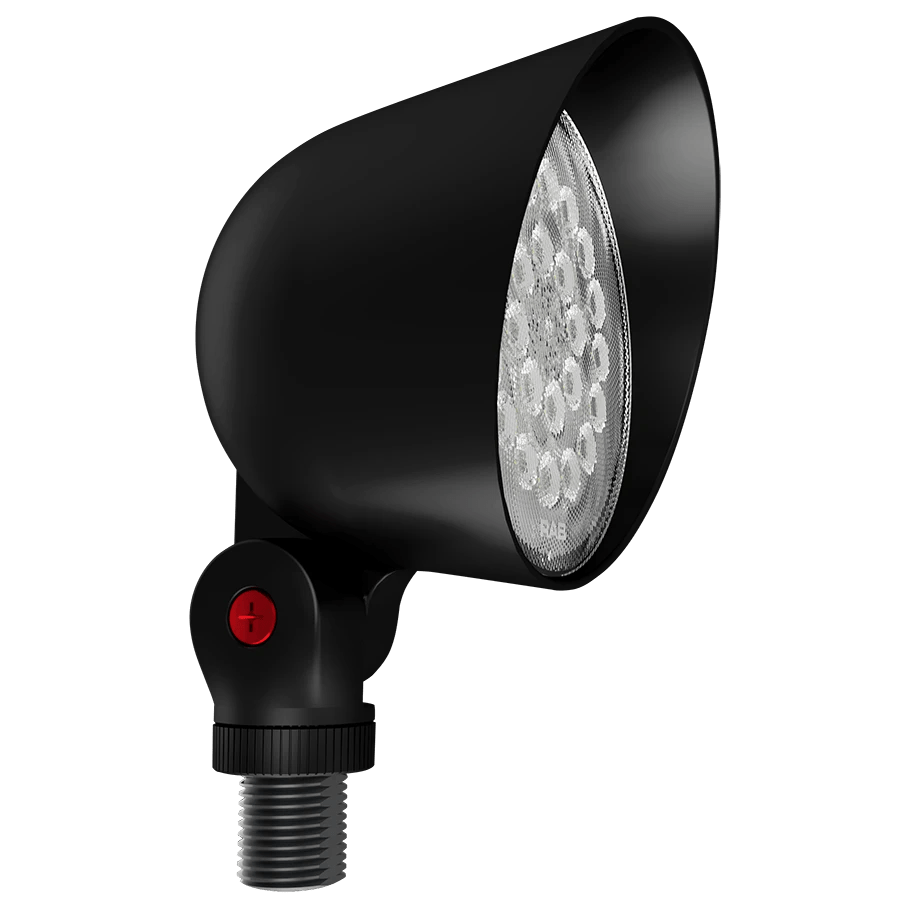

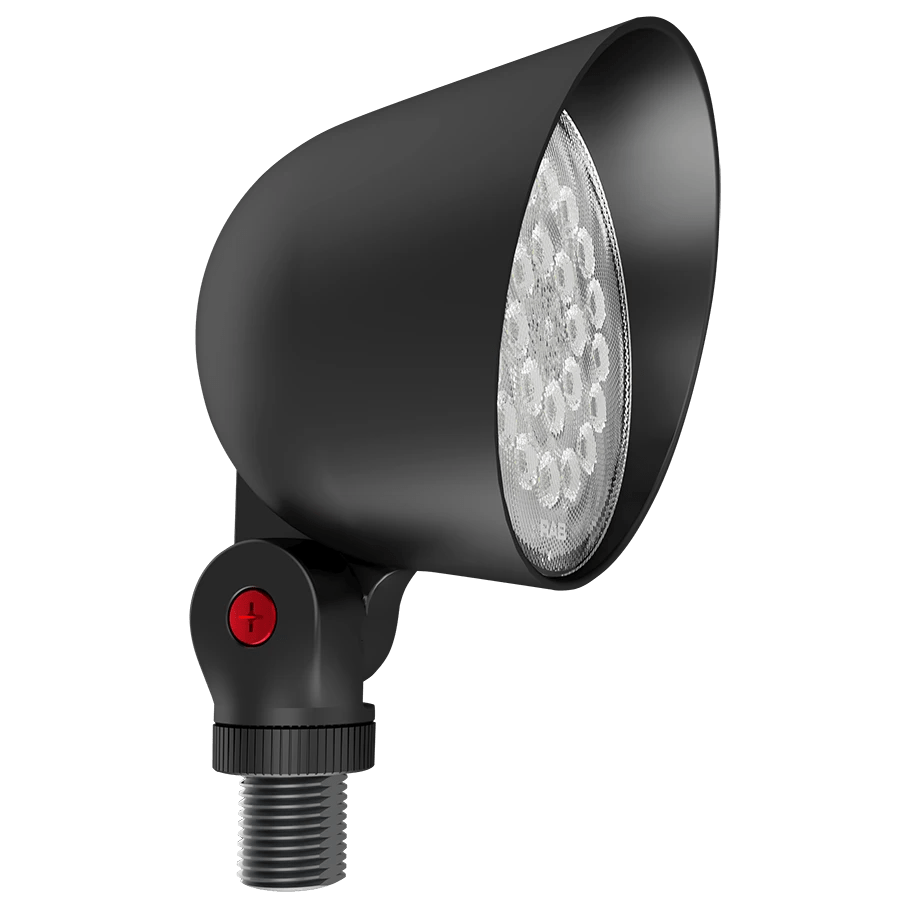

RAB LF17 8W Landscape Floodlight Selectable Wattage/CCT

RAB LF17 8W Landscape Floodlight Selectable Wattage/CCT

$43.00
$43.00
Sale Sold out
Shipping calculated at checkout.
Color: Black
Color Temperature

Field Adjustable Landscape Lighting Selectable CCT



Discover unparalleled value with the RAB LF17 8W Landscape Floodlight Selectable Wattage/CCT. Its cutting-edge design and easy-access adjustment make it the perfect choice for residential applications. With completely unique field adjustability, high-performing optics, and 0-10V dimming, the LF17 offers unbeatable versatility and efficiency at an unbeatable price. Plus, the LF17 is compatible with RAB's Mighty Posts and CU4 covers, making installation a breeze. Experience the power of this extraordinary landscape light today!

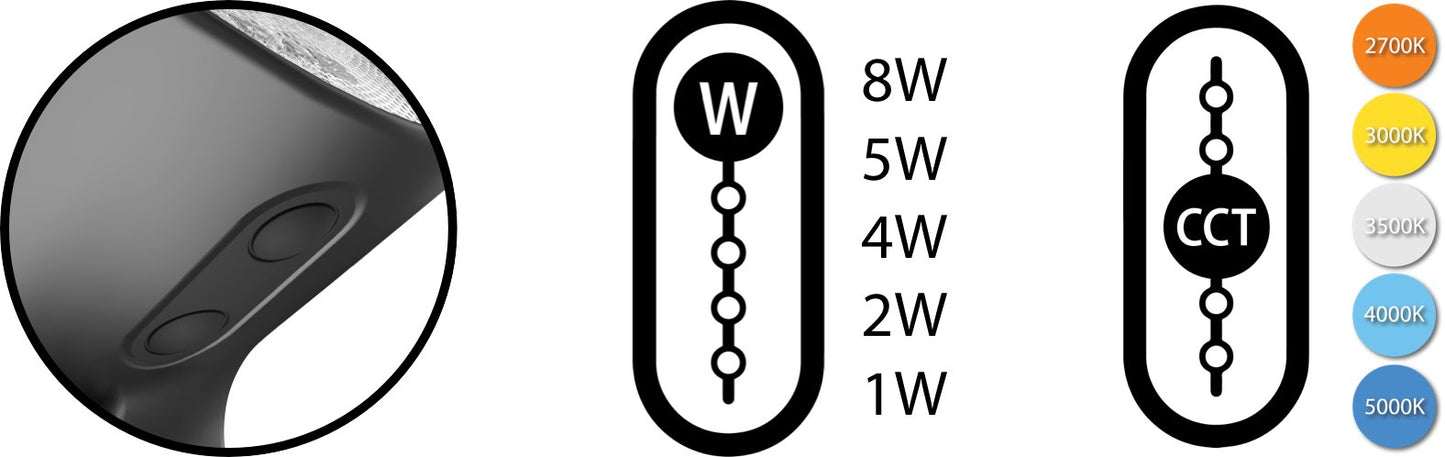

  • Adjustable wattages: 8/5/4/2/1W (8W default)
  • CCT: adjustable 2700/3000/3500/4000/5000K (4000K default)
  • Knuckle arm mounting

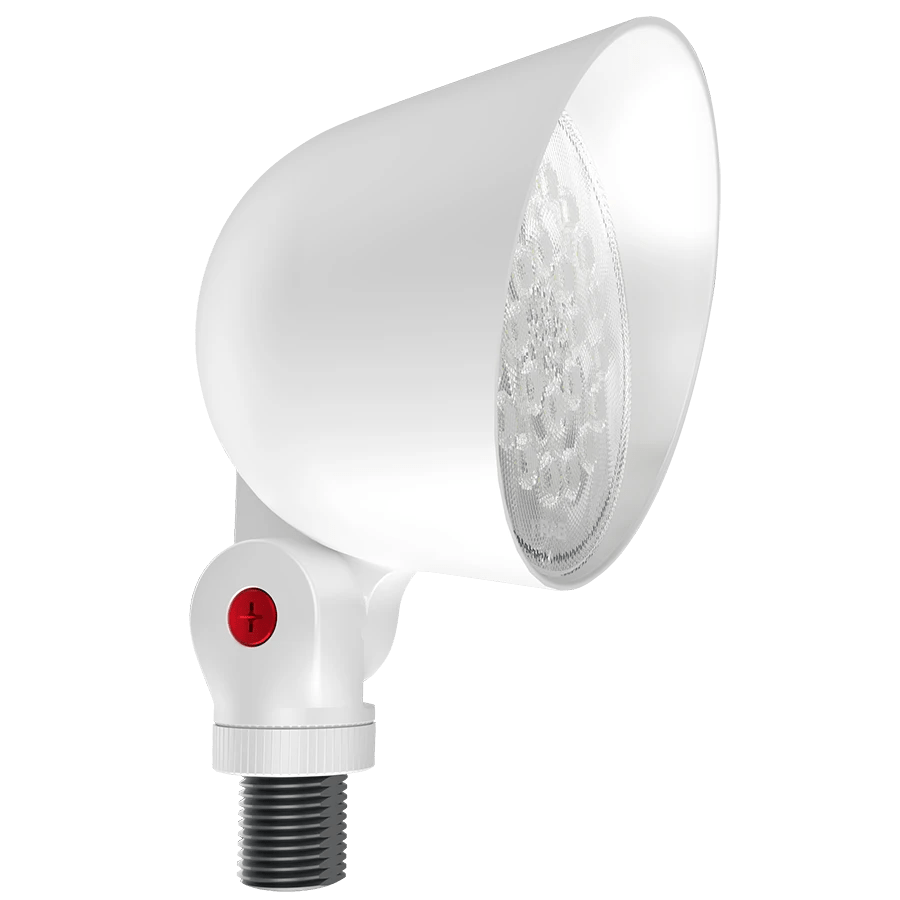

  • Available in bronze, white and black finish
  • UL listed for wet location
  • IP65 rated
  • 120V
  • 0-10V dimmable
  • 5-Year limited warranty
Spec Sheets

Spec Sheet

Installation Instructions

Info
Product Type  Landscape Floodlight
Wattage Selectable (1/2/4/5/8W)
Lumen 179-1,115 lm
Color Temp. Field Adjustable
CRI 82-86
L70 Lifespan 50,000
Housing Material Die-cast Aluminum
Housing Finish  Bronze, White, Black
LED Long-life, high-efficiency, surface-mount LEDs
Lens Polymethyl Methacrylate (PMMA)
Additional Info
                                               Compliance
 Safety Listing UL Listed
 Environment Rating IP65 Wet Location
Green Technology
 Mercury and UV free. RoHs-compliant components.
                                               Electrical
THD 7.7% at 120V
Driver
 8W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.07A
5W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.04A
4W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.03A
2W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.02A
1W: Constant Current, Class P, 120V, 50/60 Hz, 120V: 0.01A
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor 99.7% at 120V
Operating Temperature -30°C to 40°C
