RAB Lighting

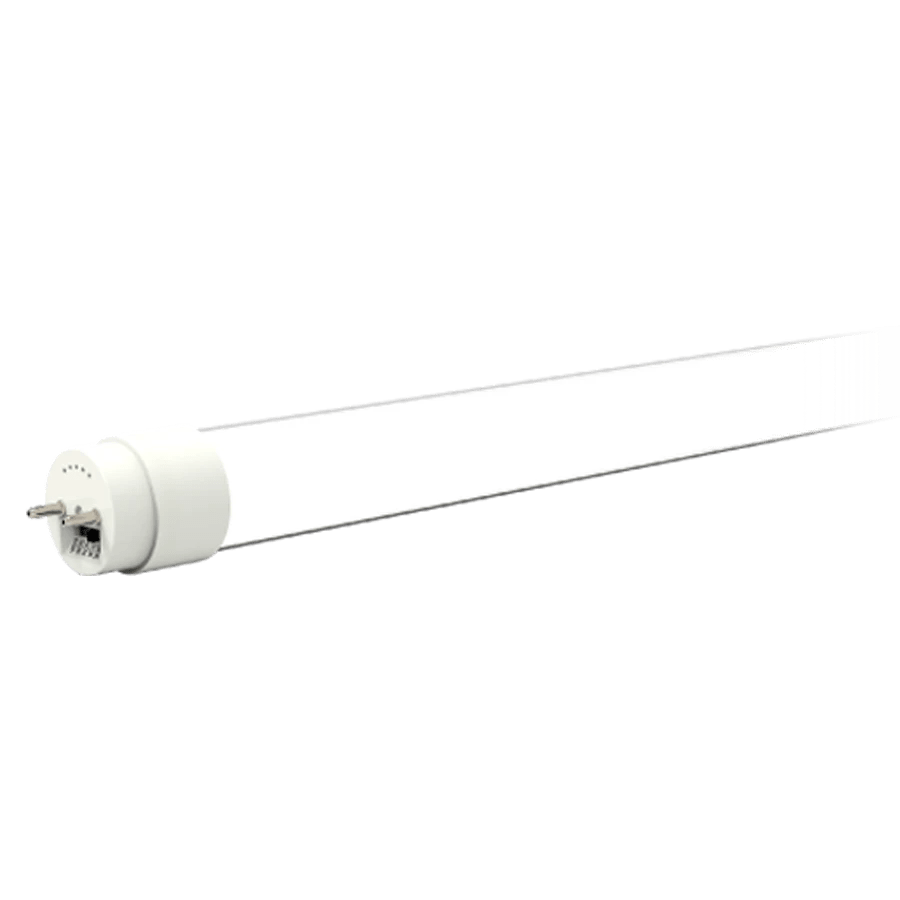

RAB T8-7.5-24G T8 7.5W 1150 LUMENS 2FT GLASS TYPE A+B S/D 5CCT 120-277V
RAB T8-7.5-24G T8 7.5W 1150 LUMENS 2FT GLASS TYPE A+B S/D 5CCT 120-277V
Regular price
$274.75
Regular price
Sale price
$274.75
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
7.5W 1150 LUMENS 2FT GLASS TYPE A+B S/D 5CCT 120-277V
- Direct replacement for fluorescent lamps: F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W
- TYPE A - plug-and-play compatible with most common commercial T8 electronic ballasts
- TYPE B - can be wired directly to line voltage 120-277V. Can be wired using single- or double-ended method
- Works with both shunted and non-shunted sockets
- 5 color temperatures in 1 SKU (3000K, 3500K, 4000K, 5000K, 6500K)
- 50,000-Hour lifespan
Spec Sheet
Spec Sheet
Family Spec Sheet
Installation Instructions
Info
| Product Code | T8-7.5-24G-8CCT-HYB |
| Type | UL Type A+B, Hybrid |
| Watt | 7.5W |
| Lumen | 1150 |
| Color | 3000/3500/4000/5000/6500K |
| Diffuser |
Frosted |
| Dimmable |
Type B: Triac Dimming @ 120V only Type A: 0-10V dimming with compatible dimmable fluorescent ballast and 0-10V Dimmer |
| Equiv. Wattage | 17W |
| Life Hours | 50,000 |
| Volt | 120/277V |
Additional Info
| Safety Listings | DLC, cULus Listed |
| Spread | 220° |
| CRI | >80 |
| Location Rating | Damp |
