RAB Lighting

RAB WFRETRO4 4" 10W LED Slim Wafer Retrofit Selectable CCT/Wattage

RAB WFRETRO4 4" 10W LED Slim Wafer Retrofit Selectable CCT/Wattage

Regular price $14.99
Regular price Sale price $14.99
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

WFRETRO4

Looking to upgrade existing downlights with the contemporary look of low-profile, edge-lit wafers? The WFRETRO quickly installs into most standard housings and can be used in both indoor and outdoor applications. The WFRETRO installs like any standard retrofit downlight. Simply remove the old bulb or trim, screw the Edison base adapter into the socket, and lock in place with torsion springs or friction clips. (Fits most 4" and 5/6" cans)

  • Edge-lit wafer look that retrofits in existing downlight housings
  • Field adjustable: 3 brightness levels & 5 CCTs

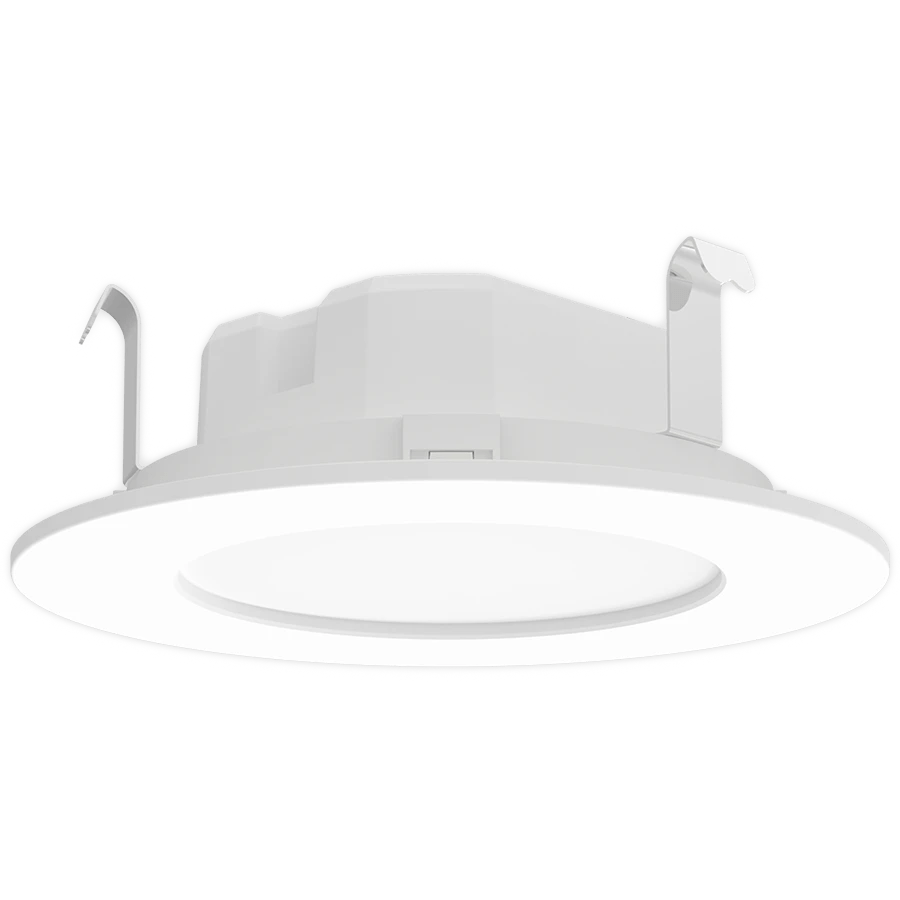

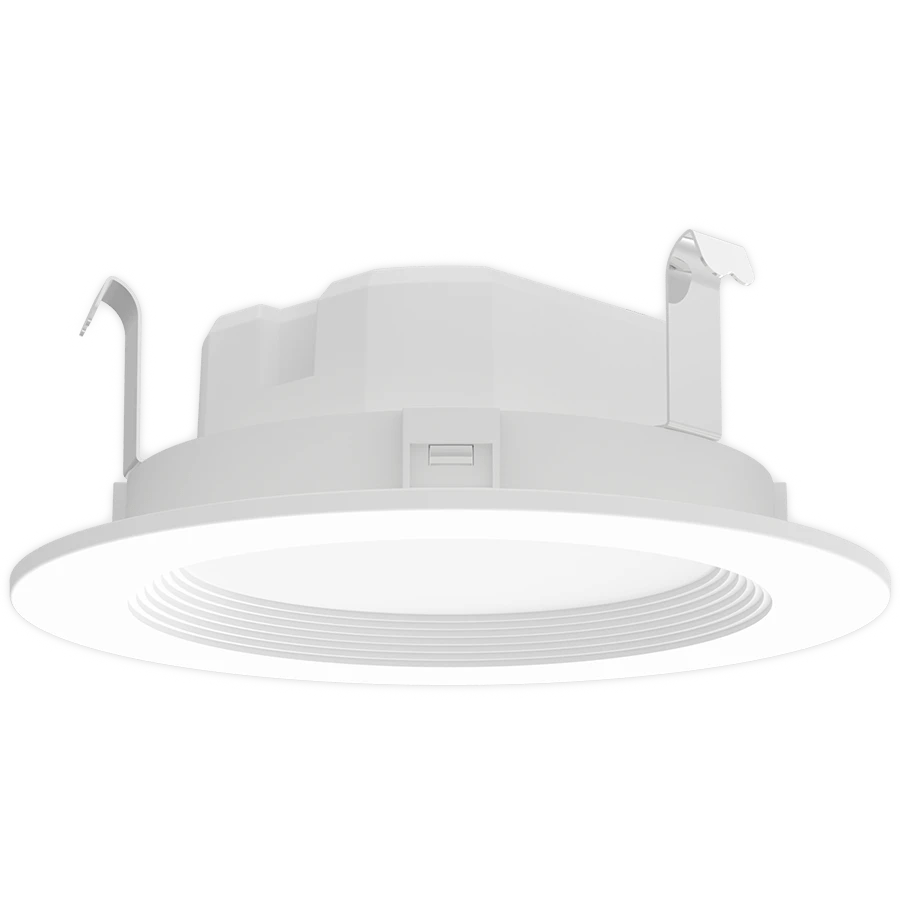

  • Smooth or step baffle lens
  • Mounts inside standard 4" or 5/6" recessed downlight housings
    Spec Sheets

    Family Spec Sheet

    Smooth / Baffle

    Installation Instructions

    Info
     Product Type  Flatt Wafer Retrofit
    Wattage 10/8/6W
    Lumen 835/685/525
    Color Temp. Field Adjustable
    CRI 90
    L70 Lifespan 50,000
    Housing Material
    Plastic+Metal
    Finish  White Trim
    Style Smooth | Baffle
    LED Long-life, high-efficacy, surface-mount LEDs
    Socket Adapter Edison 26 Medium Base Socket adapter included in box
    Beam Angle 110°±10°
    Lens Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
    Mounting Easy installation with friction clips (4") and torsion springs (5"/6")
    Additional Info
                                                   Compliance
     Safety Listing UL Listed
     Environment/Fixture Rating Wet Location
    T24 JA8 Compliant Can be used to conform with the requirements of California Title 24 Part 6.
    IC Rated No
    Energy Star Compliant Yes
    Air Tight Yes
    FCC Complies with Part 15 of the FCC Rules
    RoHS Mercury and UV free. RoHS-compliant components
                                                   Electrical
    THD ≤20%
     Power Factor ≥0.9
    Input Voltage 120V
    Operating Frequency 60Hz
    Operating Temperature -30°C to 40°C
    Dimming TRIAC and ELV dimming compatibility

      Note All values are typical (tolerance +/- 10%)
