RAB Lighting

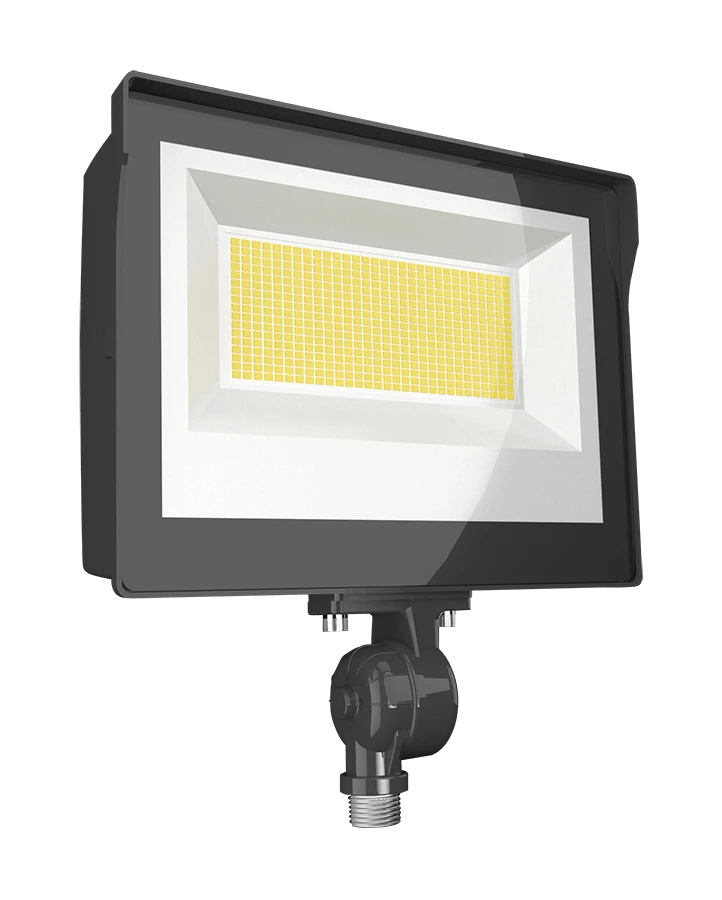

RAB X17 80W LED Flood Light Knuckle Mount Selectable CCT

RAB X17 80W LED Flood Light Knuckle Mount Selectable CCT

Regular price $179.00
Regular price Sale price $179.00
Sale Sold out
Shipping calculated at checkout.
Mount Style

X17 40/60/80W 5356-11509 Lumen Flood Light 120-277V

  • 0-10V Dimming, standard
  • 100,000-hour LED lifespan

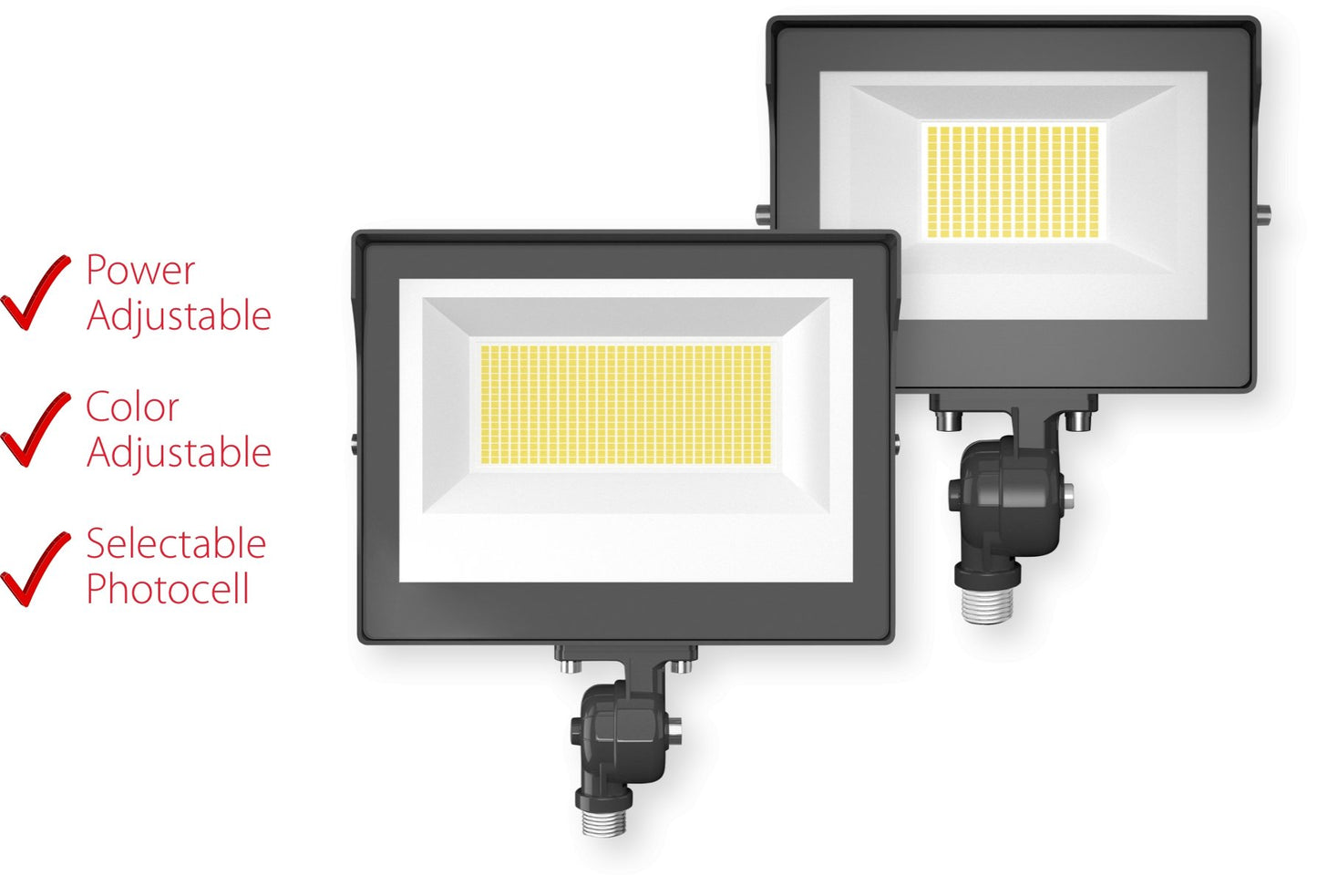

  • Selectable photocell (on/off) included
  • 5-Year, Limited Warranty

*Trunnion kit is included in the 80W model

Click Here for Slipfitter Mount sold separately

Click Here for Wire Guard sold separately

Spec Sheet


Bronze Spec / White Spec

Installation Instructions

Product Type  Flood Light
Wattage 40W/60W/80W
Lumen 5356-11509
Efficacy 130.7-146.1 lm/W
Color Temp. 3000K 4000K 5000K
CRI 83-85 CRI
L70 Lifespan 100,000 Hours
Housing Precision die-cast aluminum

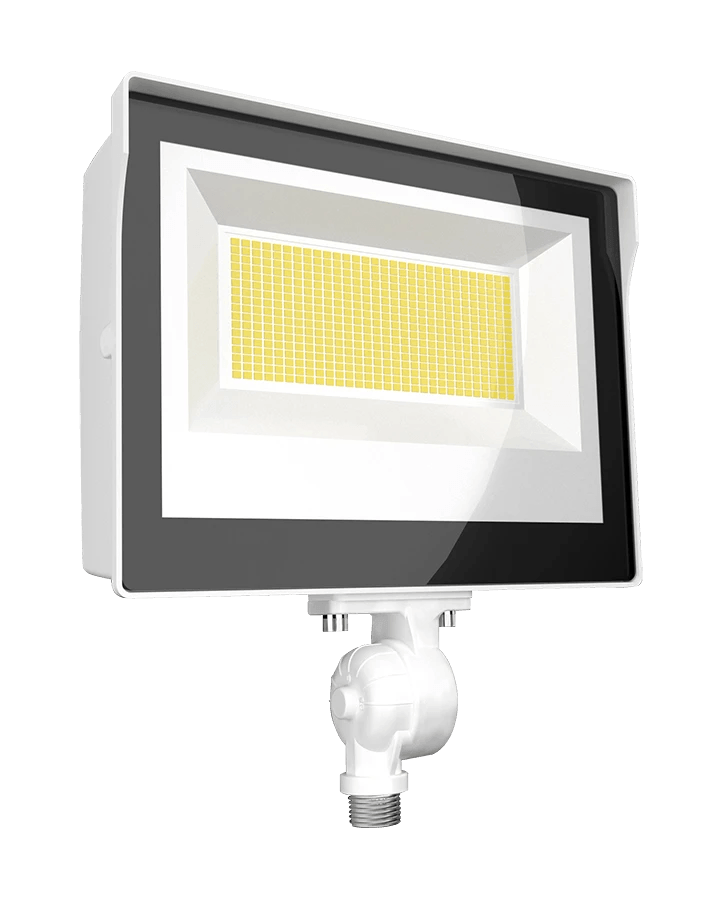

Finish  White | Bronze

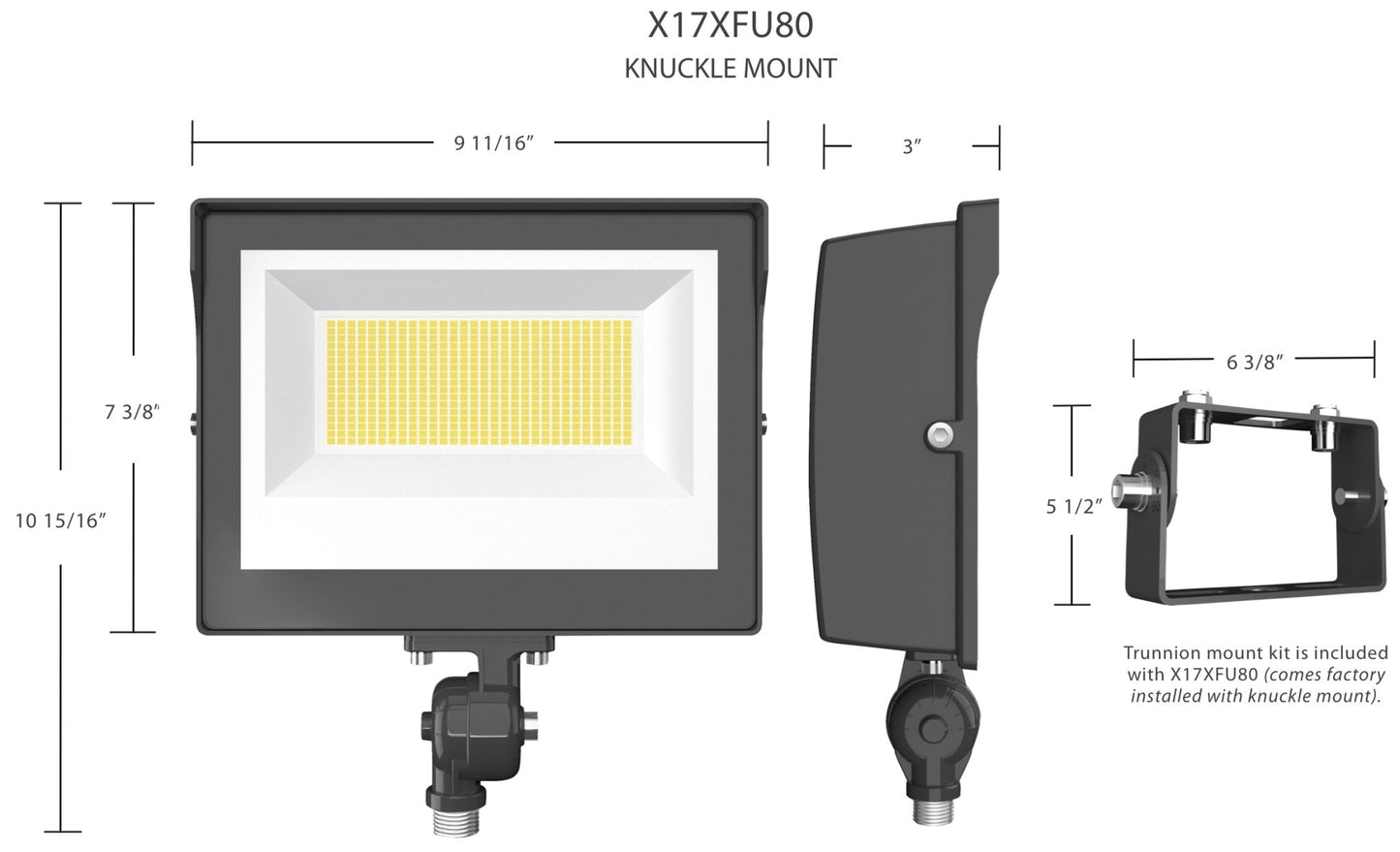

Mounting Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments. Trunnion kit is included.
Style Knuckle Mount
Lens Tempered glass
Beam Angle NEMA Beam Spread of 7H x 7V
IP Rating Ingress protection rating of IP65 for dust and water
Additional Info


UL Listed Suitable for wet locations
IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: PLTHPHCP1VH8
Driver Constant Current, Class 2, 120-277V, 50/60Hz,120V: 0.80A, 208V: 0.50A, 240V: 0.40A, 277V: 0.35A
THD 3.46% at 120V, 11.53% at 277V
Power Factor  99.6% at 120V, 93.3% at 277V
Dimming Driver Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Photocell 120-277V selectable photocell that can be turned on and off
