The X22 series not only gives you the flexibility of controlling beam angle, wattage, CCT, and photocell—it also comes with two mounting options right out of the box for a mind-blowing 144 SKUs in ONE SINGLE FLOODLIGHT!
Models of the X22 are available in both white and bronze with an adjustable distribution that makes them the optimal floodlight for a large variety of general-purpose applications. All models also come standard with 0-10V dimming
50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Housing
Precision die-cast aluminum
Finish
Bronze | White
Mounting

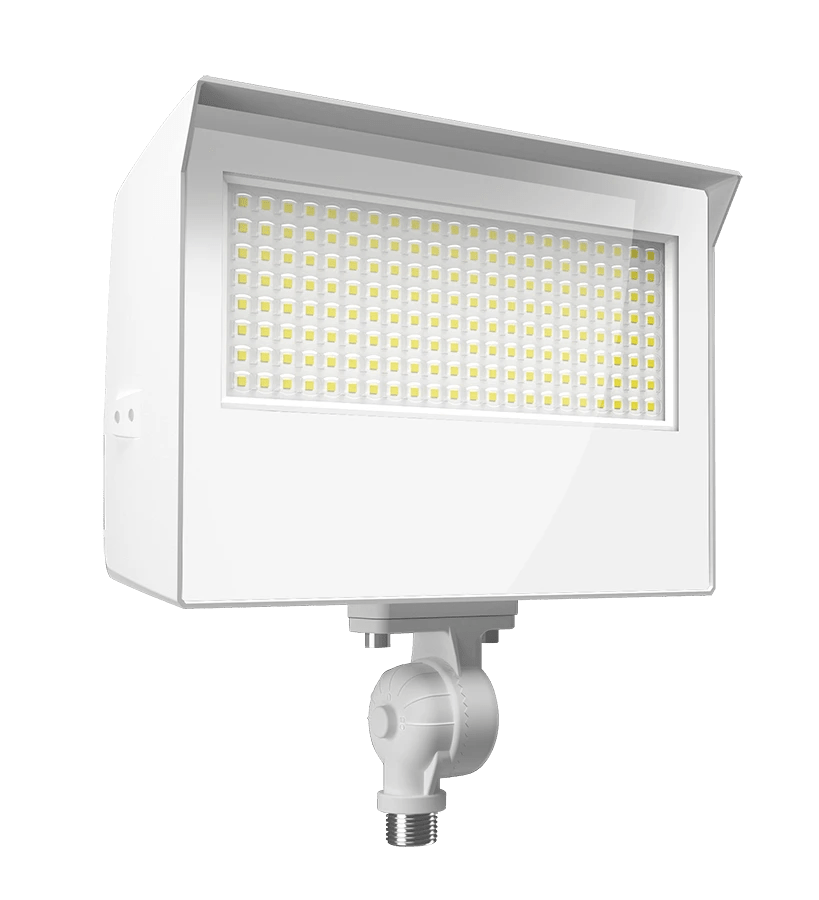

20W and 35W : Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments. Yoke included.
60W and 80W: Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments.

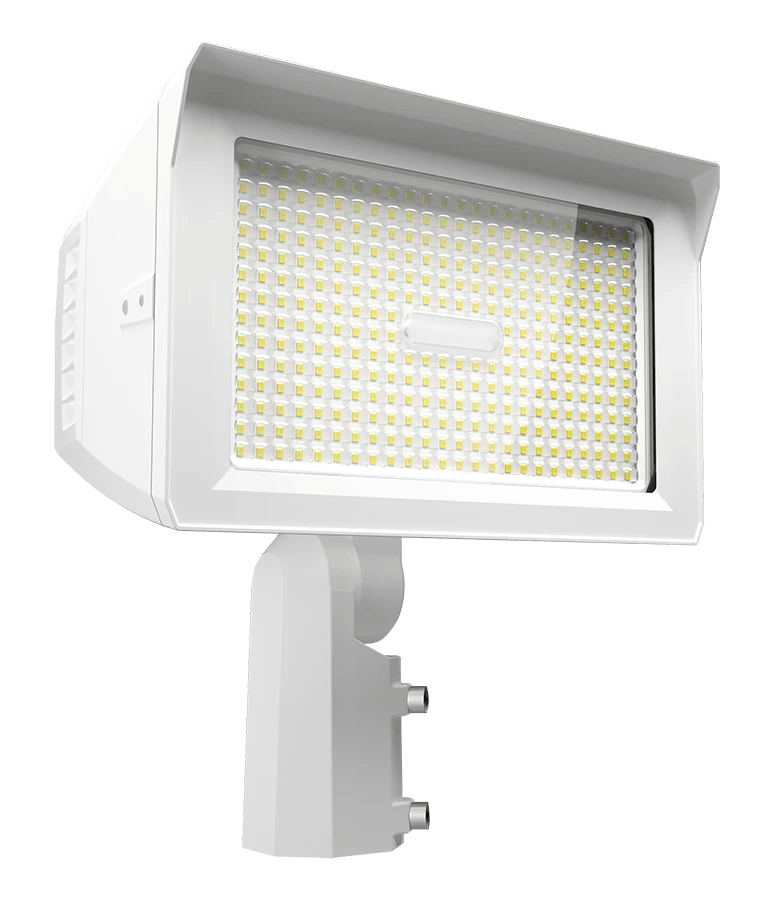

Trunnion included. 150W: Slip fitter for mounting on 2 3/8" tenon with 180° adjustability. Trunnion included..
Tilt Increment
Rotates in 6 degree increments
Lens
Tempered glass
Beam Angle
NEMA Beam Spread of 7H x 6V
IP Rating
Ingress protection rating of IP65 for dust and water
Additional Info
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: PLTHPHCP1VH8
Electrical
Driver
See Spec Sheets
THD
See Spec Sheets
Power Factor
See Spec Sheets
Dimming Driver
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Photocell
120-277V selectable photocell that can be turned on and off
