WAC Lighting

WAC Lighting WL-LED100 4W Horizontal Scoop LED Step Light 30K

WAC Lighting WL-LED100 4W Horizontal Scoop LED Step Light 30K

Regular price $115.95
Regular price $129.99 Sale price $115.95
Sale Sold out
Shipping calculated at checkout.
Color Temperature

4W Horizontal LED Step Light

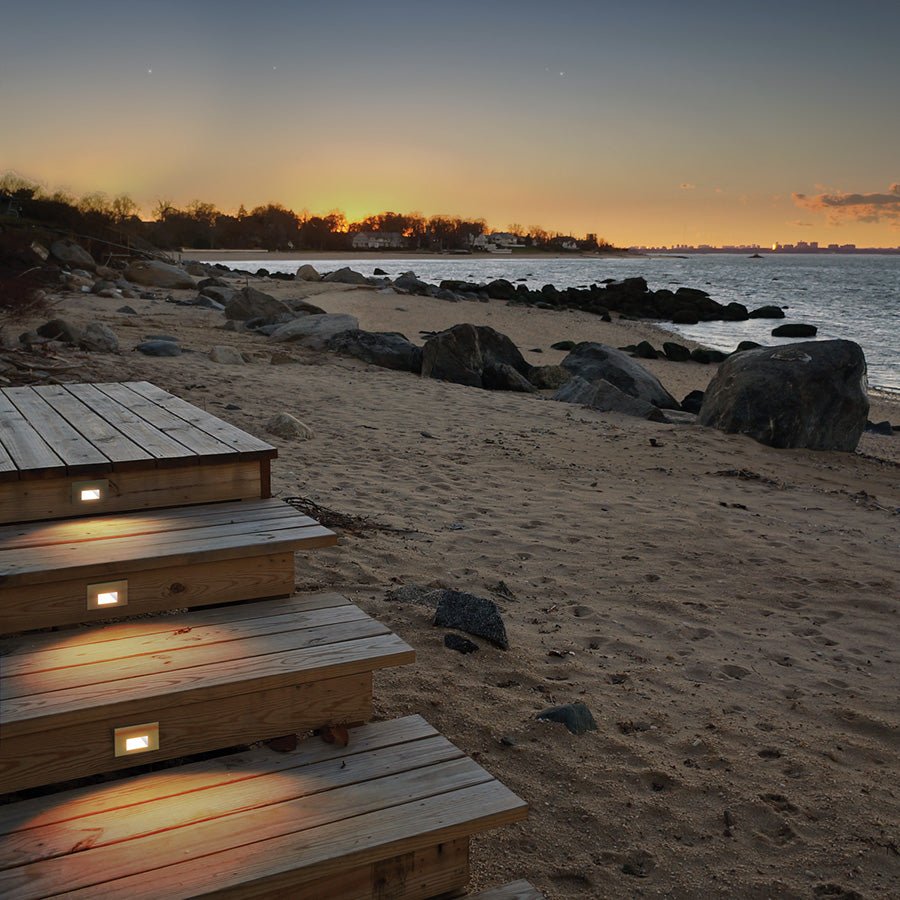

Horizontal rectangle LEDme® Step Light. Designed for safety and style on stairways, patios, decks, balcony areas, walkways and building perimeters. Features an architectural design. Energy efficient for long-lasting indoor and outdoor lighting solutions. Creates an attractive, romantic impression at night.

  • Delivered Lumens: 68lm
  • 3000K
  • CRI: 90
  • Power: 3.9W
  • Input: 120 VAC, 277 VAC, 50/60Hz
  • ELV Dimming: 100-10%
  • Rated Life: 50000 Hours
  • Construction: Die-cast aluminum
  • Low profile, flush to wall aesthetics with no visible hardware
  • Balanced lighting, free of shadows with minimum glare
  • Up to 200 fixtures can be connected in parallel

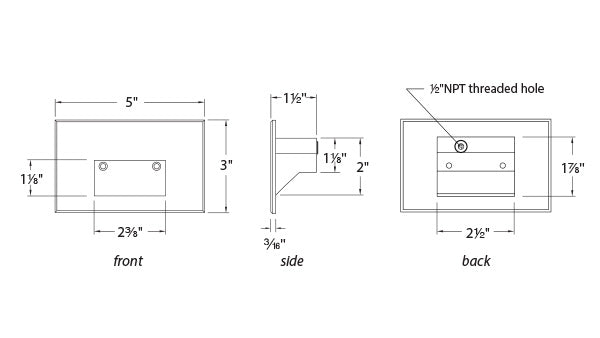

Length (in.) 5.00"
Width (In.)  3.00"
Depth (In.) 1.50"
Spec Sheets

Spec Sheet

Installation Instructions

    Catalog No. Description Color Temp. Wattage Lumens Finish

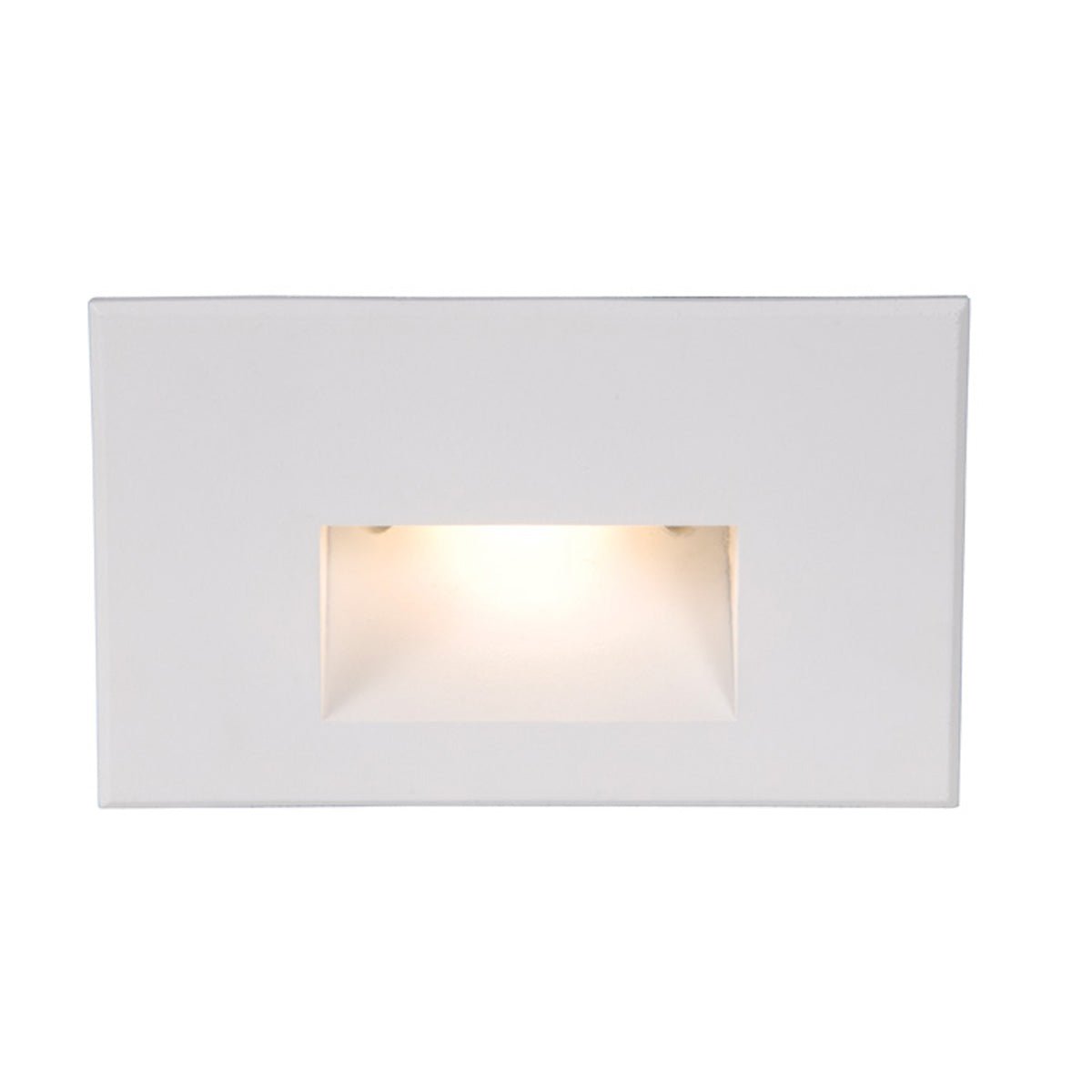

    WAC-WL-LED100-C-WT Horizontal Scoop 3000K 4W 145 White

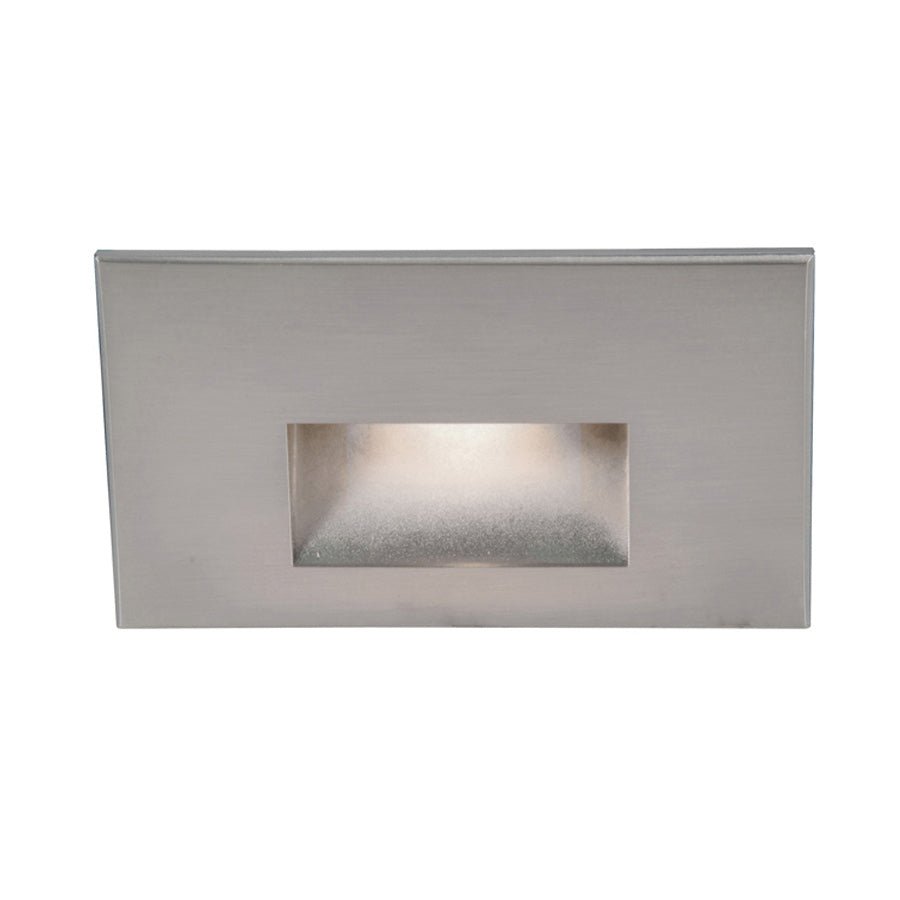

    WAC-WL-LED100-C-SS Horizontal Scoop 3000K 4W 145 Stainless Steel
    Additional Info
    Construction  Die-cast aluminum or 316 marine grade cast stainless steel
    Direct wiring, no remote driver needed. Input voltage: 120V or 277VAC 50/60Hz
    Light Source
    3000K  HV-AC High Power LED, CRI: 90 Optional color lenses. Total power consumption of 3.5W
    Fits into 2” × 4” J-Box with minimum inside dimensions of 3"L × 2"W × 2"H Includes bracket for J-Box mount.
    Dim to 10% with electronic low voltage (ELV) dimmer Approved dimmers: Lutron Nova-T NTELV-300 & NTELV-600, Lutron Vietri VTELV-600, Lutron Diva DVELV-300P, Lutron Skylark SELV-300P, Lutron Maestro MAELV-600
    IP66, UL & cUL Listed for wet locations
    Title 24 JA8-2016 Compliant.
